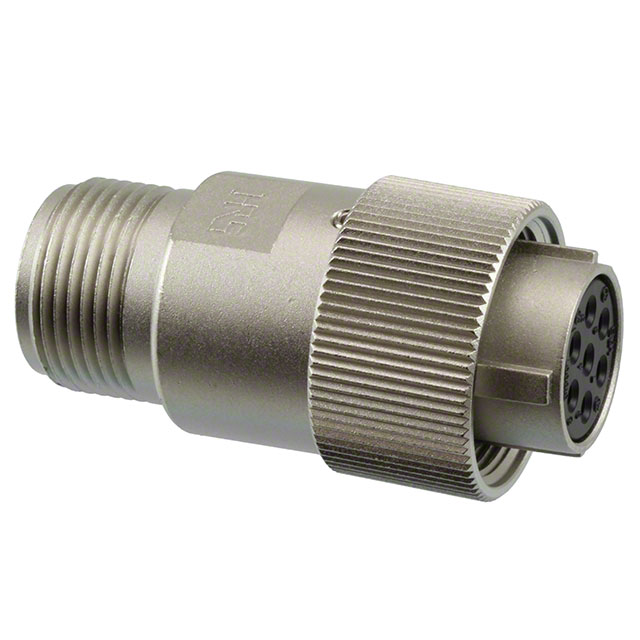

JRC16WPQ-7S(71)

Obsolete

Hirose Electric USA, Inc.

CONN PLUG FMALE 7POS SOLDER CUP

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN PLUG FMALE 7POS SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	JRC16WPQ-7S(71)

null

Part	For Use With/Related Products	Cable Exit	Shell Size - Insert	Type	Primary Material	Voltage Rating	Color	Ingress Protection	Contact Material	Insert Material	Shell Finish	Shell Material	Backshell Material, Plating	Connector Type	Mounting Type	Contact Finish - Mating	Applications	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Current Rating (Amps)	Features	Orientation	Number of Positions
Hirose Electric USA, Inc. JRC16WPQ-7S(71)
Hirose Electric USA, Inc. JRC16WPQ-CP10(31)	JR-W Series Connectors	180 °	16	Backshell
Hirose Electric USA, Inc. JRC16WPQ-7S(31)			16		Metal	100 VAC 140 VDC	Black	IP67/IP68 - Dust Tight Waterproof	Copper Alloy	Phenol Formaldehyde (PF)	Black Chromium	Aluminum Alloy	Black Chrome Brass	Female Sockets Plug	Free Hanging (In-Line)	Silver	Automotive Industrial Telecommunications	Unshielded	-25 °C	85 °C	UL94 V-0	10 A	Backshell Coupling Nut	Keyed	7

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Position Circular Connector

Technical documentation and resources
