RM15WTRZB-12S(72)

Obsolete

Hirose Electric USA, Inc.

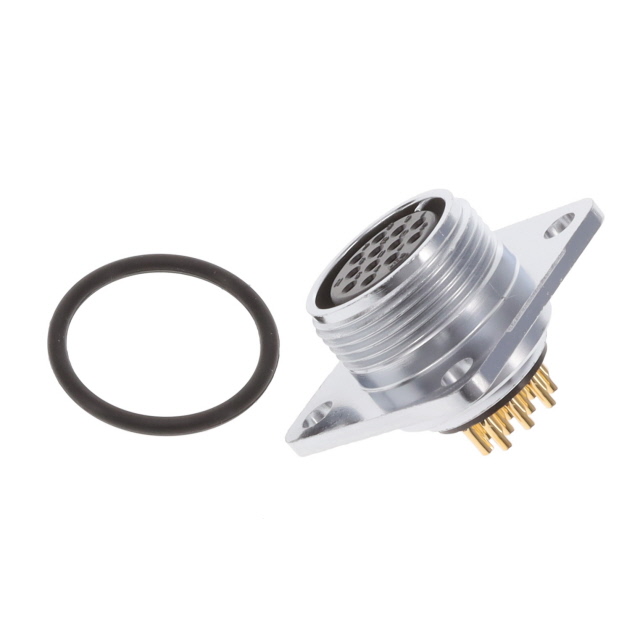

CONN RCPT FMALE 12P SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RM15WTRZB-12S(72)

Obsolete

Hirose Electric USA, Inc.

CONN RCPT FMALE 12P SOLDER CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RM15WTRZB-12S(72)

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Ingress Protection	IP67/IP68 - Dust Tight, Waterproof
Insert Material	Diallyl Phthalate (DAP)
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Number of Positions	12
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Zinc Alloy
Shell Size - Insert	15
Voltage Rating	350 VAC, 490 VDC

RM15WTRZB Series

Part	Shell Size - Insert	Mounting Feature	Orientation	Connector Type	Number of Positions	Contact Material	Voltage Rating	Ingress Protection	Contact Finish - Mating	Primary Material	Current Rating (Amps)	Insert Material	Shell Material	Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Shell Finish	Operating Temperature [Min]	Operating Temperature [Max]	Shielding
Hirose Electric USA, Inc. RM15WTRZB-4S(72)	15	Flange	Keyed	Receptacle Female Sockets	4
Hirose Electric USA, Inc. RM15WTRZB-12S(72)	15	Flange	Keyed	Receptacle Female Sockets	12	Copper Alloy	350 VAC 490 VDC	IP67/IP68 - Dust Tight Waterproof	Gold	Metal	5 A	Diallyl Phthalate (DAP)	Zinc Alloy	Silver	0.203 Ám	8 Áin	UL94 V-0	Chrome	-25 °C	85 °C
Hirose Electric USA, Inc. RM15WTRZB-8S(77)	15	Flange	Keyed	Receptacle Female Sockets	8		500 VAC 700 VDC	IP67/IP68 - Dust Tight Waterproof		Metal	5 A		Brass Zinc Alloy	Silver			UL94 V-0		-25 °C	85 °C	Unshielded
Hirose Electric USA, Inc. RM15WTRZB-10P(77)	15	Flange	Keyed	Male Pins Receptacle	10		350 VAC 490 VDC	IP67/IP68 - Dust Tight Waterproof		Metal	5 A		Brass Zinc Alloy	Silver			UL94 V-0		-25 °C	85 °C	Unshielded
Hirose Electric USA, Inc. RM15WTRZB-4PA-A(11)	15	Flange	Keyed	Male Pins Receptacle	4		500 VAC 700 VDC	IP67/IP68 - Dust Tight Waterproof		Metal	10 A		Brass Zinc Alloy	Silver			UL94 V-0		-25 °C	85 °C	Unshielded
Hirose Electric USA, Inc. RM15WTRZB-8P(71)	15	Flange	Keyed	Male Pins Receptacle	8	Copper Alloy	500 VAC 700 VDC	IP67/IP68 - Dust Tight Waterproof	Silver	Metal	5 A	Diallyl Phthalate (DAP)	Zinc Alloy	Silver	2 µm	78.7 µin	UL94 V-0	Chrome	-25 °C	85 °C
Hirose Electric USA, Inc. RM15WTRZB-2P(71)	15	Flange	Keyed	Male Pins Receptacle	2	Copper Alloy	600 VAC 840 VDC	IP67/IP68 - Dust Tight Waterproof	Silver	Metal	10 A	Diallyl Phthalate (DAP)	Zinc Alloy	Silver	2 µm	78.7 µin	UL94 V-0	Chrome	-25 °C	85 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

RM15WTRZB Series

12 Position Circular Connector Receptacle, Female Sockets Solder Cup
