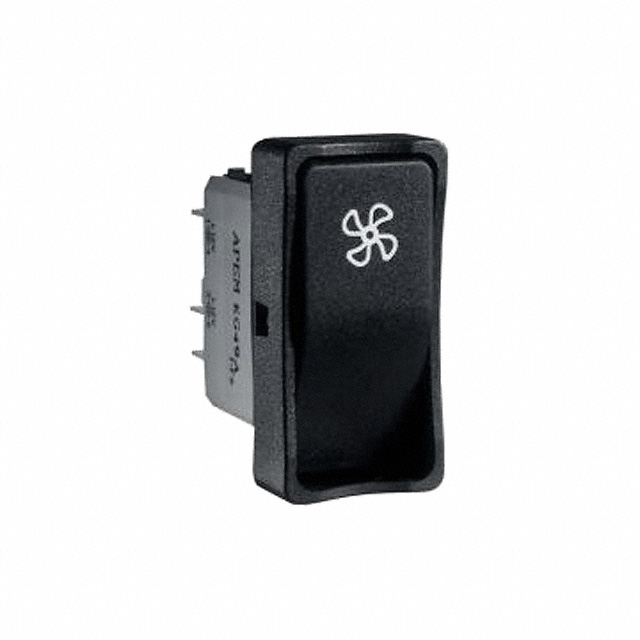

KG313A2XXA21XX

Active

APEM

ROCKER SWITCH KG PROTECTED ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

APEM

ROCKER SWITCH KG PROTECTED ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	KG313A2XXA21XX

Actuator Marking	No Marking
Actuator Type	Convex (Reverse V)
Circuit	SPST
Color - Actuator/Cap	Black
Current Rating (Amps)	15 A
Electrical Life	10000 Cycles
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	100000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [x]	36.8 mm
Panel Cutout Dimensions [y]	21.08 mm
Switch Function	On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - DC	12 V

Part	Voltage Rating - DC	Actuator Marking	Mechanical Life	Actuator Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Operating Temperature [Max]	Operating Temperature [Min]	Electrical Life	Color - Actuator/Cap	Ingress Protection	Current Rating (Amps)	Mounting Type	Switch Function	Circuit	Termination Style
APEM KG313A2XXA21XX	12 V	No Marking	100000 Cycles	Convex (Reverse V)	21.08 mm	36.8 mm	85 °C	-40 °C	10000 Cycles	Black	IP65 - Dust Tight Water Resistant	15 A	Panel Mount Snap-In	On-Off	SPST	Quick Connect - 0.250" (6.3mm)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch SPST 15A (DC) Panel Mount, Snap-In
