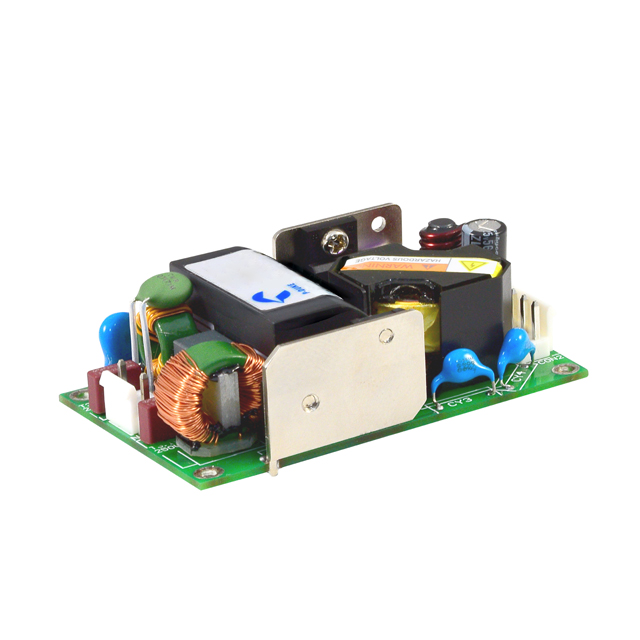

MAD65US12D

Active

P-DUKE Technology

AC/DC CONVERTER 12V 65W

Search across all available documentation for this part.

Active

P-DUKE Technology

AC/DC CONVERTER 12V 65W

Technical Specifications

Parameters and characteristics for this part

Specification	MAD65US12D

Applications	ITE (Commercial), Medical
Approval Agency	CE, cURus, CB, FCC
Current - Output 1	5.42 A
Efficiency	92.5 %
Features	Adjustable Output, Universal Input
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Size / Dimension [x]	76.2 mm
Size / Dimension [x]	3 "
Size / Dimension [y]	50.8 mm
Size / Dimension [y]	2 in
Size / Dimension [z]	0.94 in
Size / Dimension [z]	23.9 mm
Standard Number	60950-1, 60601-1, 62368-1
Type	Open Frame
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	85 VAC, 120 VDC
Voltage - Isolation	4000 V
Voltage - Output 1	12 V

Part	Approval Agency	Current - Output 1	Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Type	Minimum Load Required	Standard Number	Mounting Type	Voltage - Isolation	Efficiency	Number of Outputs	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Voltage - Input [Min]	Voltage - Input [Max]
P-DUKE Technology MAD65US12D	CB CE cURus FCC	5.42 A	Adjustable Output Universal Input	50.8 mm	76.2 mm	0.94 in	2 in	3 "	23.9 mm	Open Frame		60601-1 60950-1 62368-1	Chassis Mount	4000 V	92.5 %	1	12 V	85 °C	-40 °C	ITE (Commercial) Medical	85 VAC 120 VDC	264 VAC 370 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 1 Output 12V 85 ~ 264 VAC, 120 ~ 370 VDC Input
