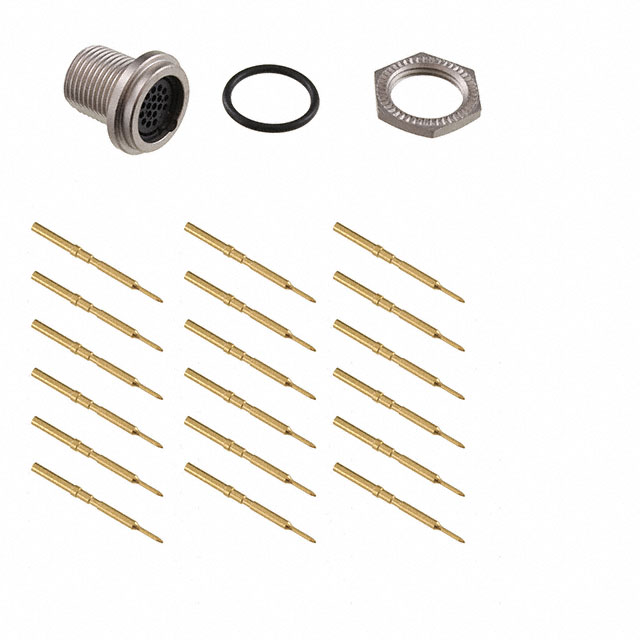

SF7980-18PG-300
ActiveConxall/Switchcraft
CONN RCPT MALE 18POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
SF7980-18PG-300
ActiveConxall/Switchcraft
CONN RCPT MALE 18POS GOLD CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SF7980-18PG-300 |
|---|---|
| Color | Silver |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Ingress Protection | IP66/IP68 |
| Insert Material | Polyester Resin |
| Mounting Feature | Bulkhead - Front Side Nut |
| Number of Positions | 18 |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Copper Alloy |
| Shielding | Shielded |
| Termination | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 22.51 | |
| 10 | $ 21.43 | |||
Description
General part information
SF7980 Series
18 Position Circular Connector Receptacle, Male Pins Crimp
