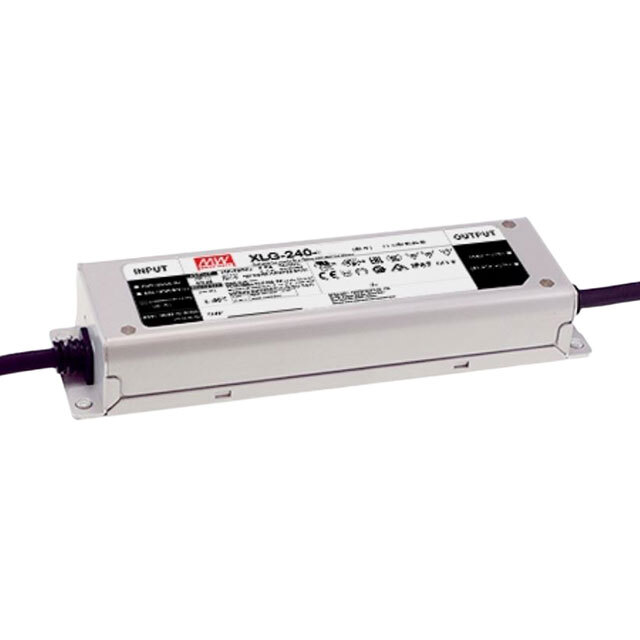

XLG-240-L-AB
ActiveMEAN WELL USA Inc.
240W LED POWER SUPPLY O/P +178~
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XLG-240-L-AB |
|---|---|
| Approval Agency | CCC, CB, cURus, EAC, ENEC, RCM, CE |
| Current - Output (Max) [Max] | 700 mA |
| Dimming | Analog, PWM |
| Efficiency | 93 % |
| Features | OTP, OVP, SCP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 239 W |
| Ratings | IP67 |
| Size / Dimension [x] | 7.68 " |
| Size / Dimension [x] | 195 mm |
| Size / Dimension [y] | 63 mm |
| Size / Dimension [y] | 2.48 in |
| Size / Dimension [z] | 35.5 mm |
| Size / Dimension [z] | 1.4 " |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Current |
| Voltage - Input (Max) [Max] | 305 VAC |
| Voltage - Input (Min) [Min] | 100 VAC |
| Voltage - Isolation | 3750 V |
| Voltage - Output [Max] | 342 V |
| Voltage - Output [Min] | 178 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 48.61 | |
| 5 | $ 45.09 | |||
| 10 | $ 43.66 | |||
| 25 | $ 41.83 | |||
Description
General part information
XLG-240 Series
700mA 178 ~ 342V Constant Current LED Driver AC DC Converter Topology 1 Output
