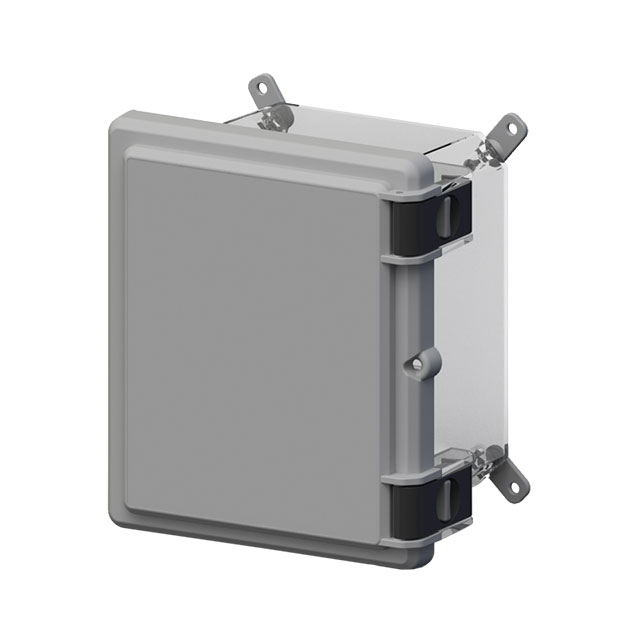

I352HLCG

Active

Serpac

BOX PLST CLR/GRY 11.71" X 10.21"

Search across all available documentation for this part.

Active

Serpac

BOX PLST CLR/GRY 11.71" X 10.21"

Technical Specifications

Parameters and characteristics for this part

Specification	I352HLCG

Area (L x W)	120 in²
Area (L x W)	774 cm²
Color	Clear, Gray Cover/Door
Container Type	Box
Design	Hinged Door, Lid
Features	Mounting Flange, PCB Supports
Height [z]	7.46 in
Height [z]	189.48 mm
Material	Plastic, Polycarbonate
Material Flammability Rating	UL94 V-0
Ratings	IP67, NEMA 4
Size / Dimension [x]	297.43 mm
Size / Dimension [x]	11.71 in
Size / Dimension [y]	10.21 in
Size / Dimension [y]	259.33 mm
Thickness [x]	8.13 mm
Thickness [x]	0.32 in

Part	Ratings	Features	Area (L x W)	Area (L x W)	Material	Height [z]	Height [z]	Thickness [x]	Thickness [x]	Design	Container Type	Color	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Material Flammability Rating
Serpac I352HLCG	IP67 NEMA 4	Mounting Flange PCB Supports	120 in²	774 cm²	Plastic Polycarbonate	7.46 in	189.48 mm	8.13 mm	0.32 in	Hinged Door Lid	Box	Clear Gray Cover/Door	297.43 mm	10.21 in	259.33 mm	11.71 in	UL94 V-0
Serpac I352HLGG	IP67 NEMA 4	Mounting Flange PCB Supports	120 in²	774 cm²	Plastic Polycarbonate	7.46 in	189.48 mm	8.13 mm	0.32 in	Hinged Door Lid	Box	Gray	297.43 mm	10.21 in	259.33 mm	11.71 in	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 98.07

General part information

Box Plastic, Polycarbonate Clear, Gray Cover/Door Hinged Door, Lid 11.710" L x 10.210" W (297.43mm x 259.33mm) X 7.460" (189.48mm)
