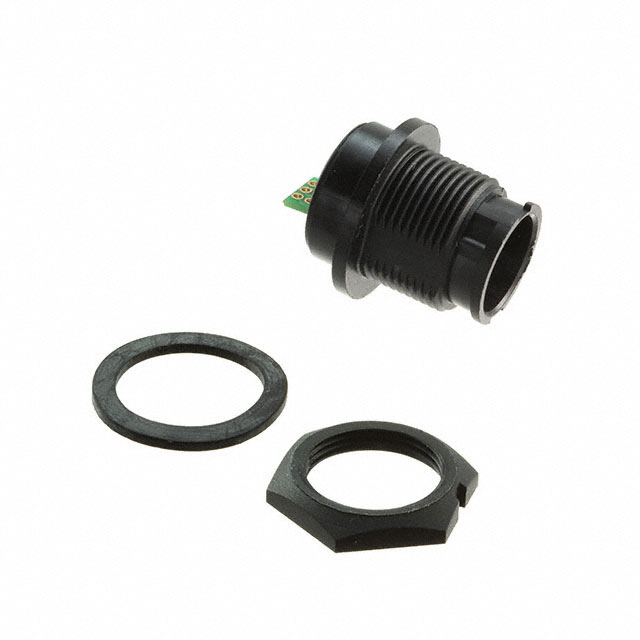

DCP-USBCB-SC

Active

Conxall/Switchcraft

CONN RCPT USB2.0 MIC AB PNL MT

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT USB2.0 MIC AB PNL MT

Technical Specifications

Parameters and characteristics for this part

Specification	DCP-USBCB-SC

Connector Type	USB - micro AB
Contact Finish	Gold
Features	Circular Bayonet Coupling
Gender	Receptacle
Ingress Protection	IP67/IP68 - Dust Tight, Waterproof
Insulation Color	Black
Material Flammability Rating	UL94 V-0
Mating Cycles	300 Cycles
Number of Contacts	5
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Shell/Shielding Material	Copper Alloy
Shielding	Shielded
Specifications	USB 2.0
Termination	PC Board

Part	Gender	Material Flammability Rating	Insulation Color	Shielding	Features	Number of Contacts	Contact Finish	Connector Type	Ingress Protection	Number of Ports	Operating Temperature [Max]	Operating Temperature [Min]	Mating Cycles	Termination	Shell/Shielding Material	Specifications	Convert To (Adapter End)	Convert From (Adapter End)
Conxall/Switchcraft DCP-USBCB-SC	Receptacle	UL94 V-0	Black	Shielded	Circular Bayonet Coupling	5	Gold	USB - micro AB	IP67/IP68 - Dust Tight Waterproof	1	85 °C	-20 C	300 Cycles	PC Board	Copper Alloy	USB 2.0
Conxall/Switchcraft DCP-USBCB-F																	USB - micro AB Receptacle	USB - micro AB Receptacle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB - micro AB USB 2.0 Receptacle Connector 5 Position Panel Mount
