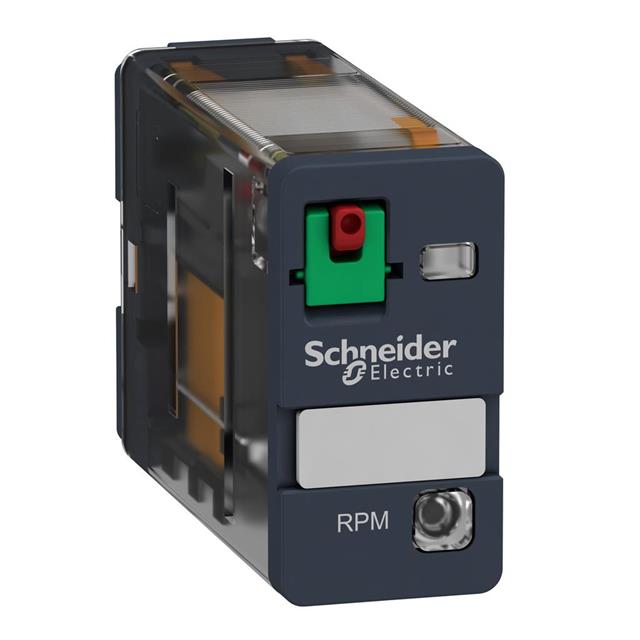

RPM12E7

Obsolete

SQUARE D BY SCHNEIDER ELECTRIC

HARMONY, POWER PLUG-IN RELAY, 15

Search across all available documentation for this part.

Obsolete

SQUARE D BY SCHNEIDER ELECTRIC

HARMONY, POWER PLUG-IN RELAY, 15

Technical Specifications

Parameters and characteristics for this part

Specification	RPM12E7

Approval Agency	CSA, UL, EAC
Coil Current	67.8 mA
Coil Resistance	708 Ohms
Coil Type	Non Latching
Coil Voltage	48 VAC/DC
Contact Form	SPDT (1 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	15 A
Features	Test Button, Lighted Indicator
Load - Max Switching	3750 VA, 420 W
Mounting Type	Socketable
Must Operate Voltage	38.4 VAC
Must Release Voltage	7.2 VAC
Operate Time	20 ms
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	20 ms
Switching Voltage	250 VAC, 28 VDC
Termination Style	Plug In

Part	Operating Temperature [Min]	Operating Temperature [Max]	Load - Max Switching	Coil Resistance	Features	Termination Style	Must Release Voltage	Must Operate Voltage	Release Time	Operate Time	Switching Voltage	Contact Material	Contact Form	Mounting Type	Contact Rating (Current)	Coil Type	Relay Type	Approval Agency	Coil Voltage	Coil Current
SQUARE D BY SCHNEIDER ELECTRIC RPM12E7	-40 °C	55 °C	420 W 3750 VA	708 Ohms	Lighted Indicator Test Button	Plug In	7.2 VAC	38.4 VAC	20 ms	20 ms	28 VDC 250 VAC	Silver Nickel (AgNi)	SPDT (1 Form C)	Socketable	15 A	Non Latching	General Purpose	CSA EAC UL	48 VAC/DC	67.8 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 10.92

General part information

General Purpose Relay SPDT (1 Form C) 48VAC Coil Socketable
