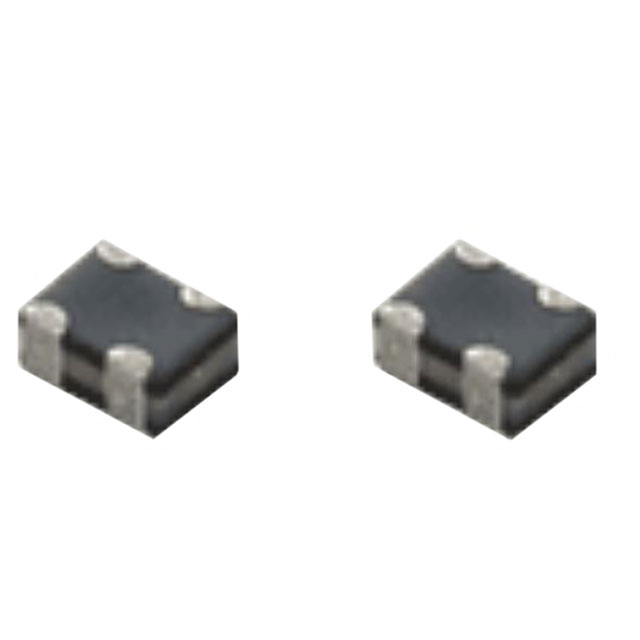

DLM0QSN900HY2D
ActiveMurata Power Solutions Inc.
DATA LINE FILTER, 1 FUNCTION(S), 5V, 0.05A, EIA STD PACKAGE SIZE 025020, SMD, 4 PIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DLM0QSN900HY2D
ActiveMurata Power Solutions Inc.
DATA LINE FILTER, 1 FUNCTION(S), 5V, 0.05A, EIA STD PACKAGE SIZE 025020, SMD, 4 PIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DLM0QSN900HY2D |
|---|---|
| Current Rating (Max) [Max] | 50 mA |
| DC Resistance (DCR) (Max) [Max] | 5 Ohm |
| Height (Max) [Max] | 0.35 mm |
| Height (Max) [Max] | 0.014 in |
| Impedance @ Frequency | 90 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Size / Dimension [x] | 0.026 in |
| Size / Dimension [x] | 0.65 mm |
| Size / Dimension [y] | 0.02 in |
| Size / Dimension [y] | 0.5 mm |
| Voltage Rating - DC | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.15 | |
| 10 | $ 0.13 | |||
| 25 | $ 0.12 | |||
| 50 | $ 0.10 | |||
| 100 | $ 0.09 | |||
| 250 | $ 0.09 | |||
| 500 | $ 0.08 | |||
| 1000 | $ 0.06 | |||
| 2500 | $ 0.06 | |||
| Digi-Reel® | 1 | $ 0.15 | ||
| 10 | $ 0.13 | |||
| 25 | $ 0.12 | |||
| 50 | $ 0.10 | |||
| 100 | $ 0.09 | |||
| 250 | $ 0.09 | |||
| 500 | $ 0.08 | |||
| 1000 | $ 0.06 | |||
| 2500 | $ 0.06 | |||
| Tape & Reel (TR) | 15000 | $ 0.05 | ||
| 30000 | $ 0.05 | |||
| 75000 | $ 0.05 | |||
Description
General part information
DLM0QSN Series
2 Line Common Mode Choke Surface Mount 90 Ohms @ 100 MHz 50mA DCR 5Ohm
