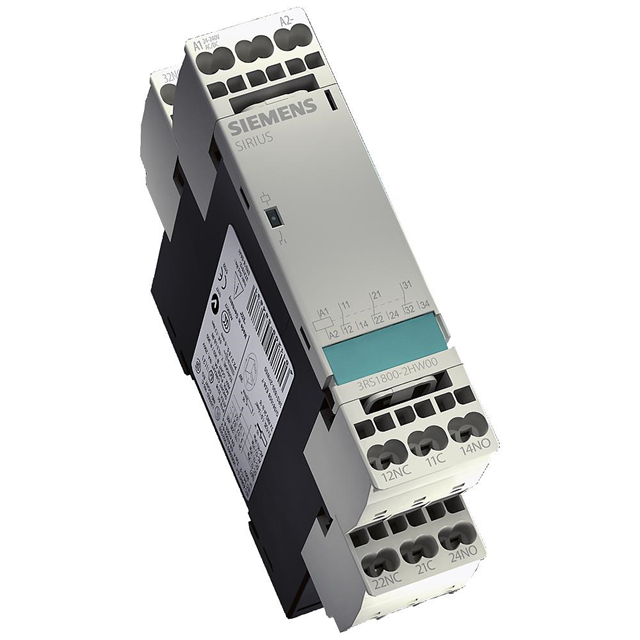

3RS18002BQ00

Active

Siemens

RELAY GEN PURP DPDT 3A 24-120V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3RS18002BQ00

Active

Siemens

RELAY GEN PURP DPDT 3A 24-120V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3RS18002BQ00

Approval Agency	CSA, UL, CCC, EAC
Coil Type	Non Latching
Coil Voltage [Max]	120 VAC
Coil Voltage [Min]	24 VAC
Contact Form	DPDT (2 Form C)
Contact Rating (Current)	3 A
Load - Max Switching	750 VA
Mounting Type	DIN Rail
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Relay Type	General Purpose
Switching Voltage	250 VAC
Termination Style	Spring Terminal

3RS180 Series

Part	Coil Type	Contact Form	Switching Voltage	Approval Agency	Relay Type	Load - Max Switching	Contact Rating (Current)	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Coil Voltage [Min]	Coil Voltage [Max]	Termination Style
Siemens 3RS18002BQ00	Non Latching	DPDT (2 Form C)	250 VAC	CCC CSA EAC UL	General Purpose	750 VA	3 A	DIN Rail	-25 °C	60 °C	24 VAC	120 VAC	Spring Terminal
Siemens 3RS18002HQ01	Non Latching	3PDT (3 Form C)	250 VAC	CCC CSA EAC UL	General Purpose	750 VA	3 A	DIN Rail	-25 °C	60 °C	24 VAC	120 VAC	Spring Terminal
Siemens 3RS18001HQ00	Non Latching	3PDT (3 Form C)	250 VAC	CCC CSA EAC UL	General Purpose	750 VA	3 A	DIN Rail	-25 °C	60 °C	24 VAC	120 VAC	Screw Terminal
Siemens 3RS18001HW00	Non Latching	3PDT (3 Form C)	250 VAC	CCC CSA EAC UL	General Purpose	750 VA	3 A	DIN Rail	-25 °C	60 °C	24 VAC	240 VAC	Screw Terminal
Siemens 3RS18002AP00	Non Latching	SPDT (1 Form C)	250 VAC	CCC CSA EAC UL	General Purpose	750 VA	3 A	DIN Rail	-25 °C	60 °C	24 VAC	240 VAC	Spring Terminal
Siemens 3RS18001BQ00	Non Latching	DPDT (2 Form C)	250 VAC	CCC CSA EAC UL	General Purpose	750 VA	3 A	DIN Rail	-25 °C	60 °C	24 VAC	120 VAC	Screw Terminal
Siemens 3RS18001HQ01	Non Latching	3PDT (3 Form C)	250 VAC	CCC CSA EAC UL	General Purpose	750 VA	3 A	DIN Rail	-25 °C	60 °C	24 VAC	120 VAC	Screw Terminal
Siemens 3RS18002HP01	Non Latching	3PDT (3 Form C)	250 VAC	CCC CSA EAC UL	General Purpose	750 VA	3 A	DIN Rail	-25 °C	60 °C	24 VAC	240 VAC	Spring Terminal
Siemens 3RS18001AQ00	Non Latching	SPDT (1 Form C)	250 VAC	CCC CSA EAC UL	General Purpose	750 VA	3 A	DIN Rail	-25 °C	60 °C	24 VAC	120 VAC	Screw Terminal
Siemens 3RS18001BP00	Non Latching	DPDT (2 Form C)	250 VAC	CCC CSA EAC UL	General Purpose	750 VA	3 A	DIN Rail	-25 °C	60 °C	24 VAC	240 VAC	Screw Terminal

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 106.70

Description

General part information

3RS180 Series

General Purpose Relay DPDT (2 Form C) 24 ~ 120VAC Coil DIN Rail
