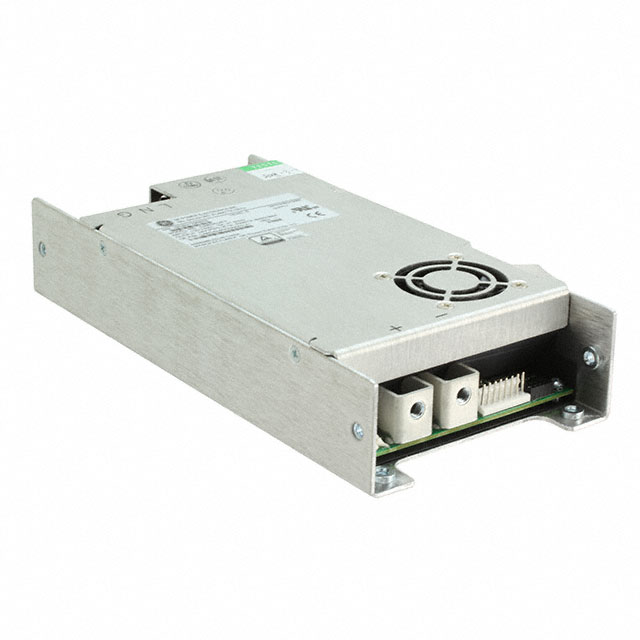

CAR0424FPXXXZ01A
ActiveOmniOn Power™
AC/DC CONVERTER 24V 400W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CAR0424FPXXXZ01A
ActiveOmniOn Power™
AC/DC CONVERTER 24V 400W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CAR0424FPXXXZ01A |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE, CB |
| Current - Output 1 | 16.67 A |
| Efficiency | 91 % |
| Features | Standby Output, Universal Input, PFC, Adjustable Output, Remote On/Off, Remote Sense |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Size / Dimension [x] | 205.7 mm |
| Size / Dimension [x] | 8.1 in |
| Size / Dimension [y] | 100 mm |
| Size / Dimension [y] | 3.94 in |
| Size / Dimension [z] | 1.58 " |
| Size / Dimension [z] | 40.1 mm |
| Type | Front End |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 176.07 | |
Description
General part information
CAR0424 Series
Front End AC DC Converters 1 Output 24V 85 ~ 264 VAC Input
