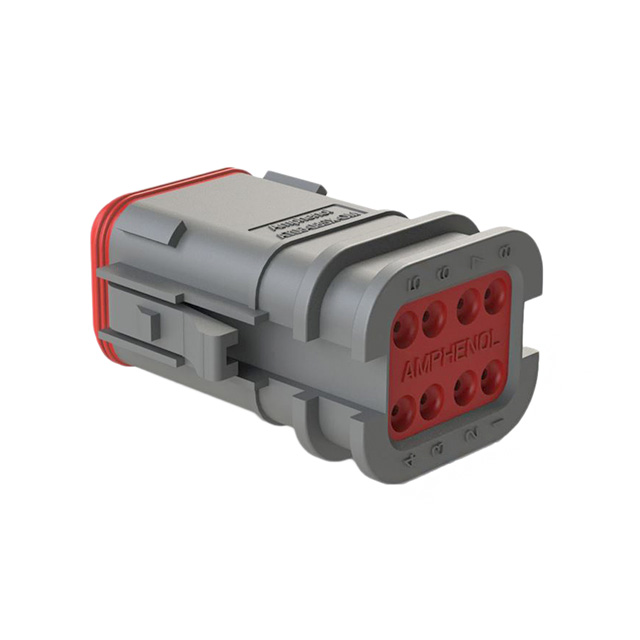

AT06-08SA-OMGRY

Active

Amphenol Sine Systems Corp

CONN PLUG HSG 8POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsAT Series Structure+ Family +1

AT06-08SA-OMGRY

Active

Amphenol Sine Systems Corp

CONN PLUG HSG 8POS

Deep-Dive with AI

DocumentsAT Series Structure+ Family +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AT06-08SA-OMGRY

Color	Gray
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	Sealed
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	8
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C

AT06-08SA Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Connector Type	Note	Insulation Material	Contact Type	Color	Fastening Type	Features	Number of Positions	Number of Rows	Mounting Type	Cable Termination	Wire Type	Wire Gauge [Min]	Wire Gauge [Max]
Amphenol Sine Systems Corp AT06-08SA-OMGRY	-55 °C	125 °C	Crimp	Plug	Contacts Not Included	Polyamide (PA66) Nylon 6/6 Glass Filled	Female Socket	Gray	Latch Lock	Sealed	8	2	Free Hanging (In-Line)
Amphenol Sine Systems Corp AT06-08SA-SS01	-55 °C	125 °C	Crimp	Plug	Contacts Not Included	Thermoplastic	Female Socket	Gray	Latch Lock		8	2	Free Hanging (In-Line)
Amphenol Sine Systems Corp AT06-08SA-OMRDGRY	-55 °C	125 °C	Crimp	Plug		Polyamide (PA66) Nylon 6/6 Glass Filled	Female Socket	Gray	Latch Lock	Sealed	8	2	Free Hanging (In-Line)
Amphenol Sine Systems Corp AT06-08SA-MMBLK	-55 °C	125 °C	Crimp	Plug	Contacts Not Included	Thermoplastic	Female Socket	Black	Latch Lock	Cap (Cover) Reduced Wire Seals Sealed	8		Free Hanging (In-Line)
Amphenol Sine Systems Corp AT06-08SA-EC01	-55 °C	125 °C	Crimp	Plug	Contacts Not Included	Thermoplastic	Female Socket	Gray	Latch Lock	Cap (Cover)	8	2	Free Hanging (In-Line)
Amphenol Sine Systems Corp AT06-08SA-RDBLK	-55 °C	125 °C	Crimp	Plug	Contacts Not Included	Thermoplastic	Female Socket	Black	Latch Lock	Sealed	8	2	Free Hanging (In-Line)
Amphenol Sine Systems Corp AT06-08SA-BLK	-55 °C	125 °C	Crimp	Plug	Contacts Not Included	Thermoplastic	Female Socket	Black	Latch Lock	Sealed	8	2	Free Hanging (In-Line)
Amphenol Sine Systems Corp AT06-08SA-KIT01				Plug			Female Socket	Gray	Latch Lock	Wedge Lock	8	2	Free Hanging (In-Line)	Crimp	Discrete	16 AWG	18 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.06
		10	$ 1.87
		25	$ 1.77
		50	$ 1.73
		100	$ 1.65
		250	$ 1.45

Description

General part information

AT06-08SA Series

8 Rectangular Connectors - Housings Plug Gray

Documents

Technical documentation and resources

AT Series

Datasheet

Structure+ Family

Datasheet
