Q-0D00V0005036i

Active

Amphenol Custom Cable

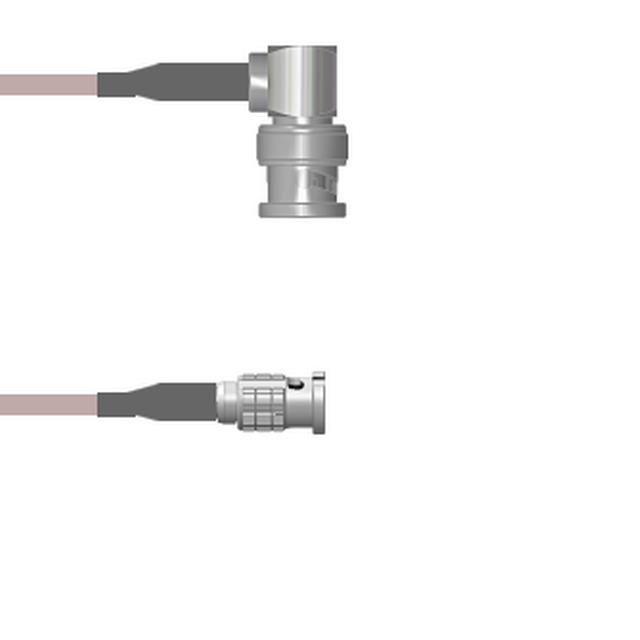

CBL ASSY BNC-HDBNC PLUG-PLUG 36"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0D00V0005036i

Active

Amphenol Custom Cable

CBL ASSY BNC-HDBNC PLUG-PLUG 36"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0D00V0005036i

1st Connector	BNC Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	HD-BNC Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	91.44 cm
Length	36 in
Overall Impedance	50 Ohms
Style	BNC to HD-BNC

Q-0D00V0 Series

Part	2nd Connector Mounting Type	Frequency - Max [Max]	1st Connector Mounting Type	Overall Impedance	Color	2nd Connector	Style	Length	Length	Length	Cable Type	2nd Contact Gender	Features	1st Connector	1st Contact Gender
Amphenol Custom Cable Q-0D00V0005060i	Free Hanging (In-Line)	4 GHz	Free Hanging (In-Line)	50 Ohms	Copper	HD-BNC Plug	BNC to HD-BNC	5 ft	1.5 m	5 '	RG-316	Male	Shielded	BNC Plug Right Angle	Male
Amphenol Custom Cable Q-0D00V0005006i	Free Hanging (In-Line)	4 GHz	Free Hanging (In-Line)	50 Ohms	Copper	HD-BNC Plug	BNC to HD-BNC		152.4 mm	6 in	RG-316	Male	Shielded	BNC Plug Right Angle	Male
Amphenol Custom Cable Q-0D00V0005036i	Free Hanging (In-Line)	4 GHz	Free Hanging (In-Line)	50 Ohms	Copper	HD-BNC Plug	BNC to HD-BNC		91.44 cm	36 in	RG-316	Male	Shielded	BNC Plug Right Angle	Male
Amphenol Custom Cable Q-0D00V0005048i	Free Hanging (In-Line)	4 GHz	Free Hanging (In-Line)	50 Ohms	Copper	HD-BNC Plug	BNC to HD-BNC	4 ft	1200 mm	48 in	RG-316	Male	Shielded	BNC Plug Right Angle	Male
Amphenol Custom Cable Q-0D00V0005072i	Free Hanging (In-Line)	4 GHz	Free Hanging (In-Line)	50 Ohms	Copper	HD-BNC Plug	BNC to HD-BNC	6 ft	1.8 m	72 in	RG-316	Male	Shielded	BNC Plug Right Angle	Male
Amphenol Custom Cable Q-0D00V0003060i	Free Hanging (In-Line)	4 GHz	Free Hanging (In-Line)	50 Ohms	Black	HD-BNC Plug	BNC to HD-BNC	5 ft	1.5 m	5 '	RG-174	Male	Shielded	BNC Plug Right Angle	Male
Amphenol Custom Cable Q-0D00V0005009i	Free Hanging (In-Line)	4 GHz	Free Hanging (In-Line)	50 Ohms	Copper	HD-BNC Plug	BNC to HD-BNC		228.6 mm	9 "	RG-316	Male	Shielded	BNC Plug Right Angle	Male
Amphenol Custom Cable Q-0D00V0003036i	Free Hanging (In-Line)	4 GHz	Free Hanging (In-Line)	50 Ohms	Black	HD-BNC Plug	BNC to HD-BNC		91.44 cm	36 in	RG-174	Male	Shielded	BNC Plug Right Angle	Male
Amphenol Custom Cable Q-0D00V00051.5M	Free Hanging (In-Line)	4 GHz	Free Hanging (In-Line)	50 Ohms	Copper	HD-BNC Plug	BNC to HD-BNC	4.9 ft	1.5 m	59.1 in	RG-316	Male	Shielded	BNC Plug Right Angle	Male
Amphenol Custom Cable Q-0D00V0005084i	Free Hanging (In-Line)	4 GHz	Free Hanging (In-Line)	50 Ohms	Copper	HD-BNC Plug	BNC to HD-BNC	7 ft	2.1 m	84 in	RG-316	Male	Shielded	BNC Plug Right Angle	Male

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 89.74
		25	$ 87.98
		50	$ 86.22
		100	$ 84.45
		250	$ 82.69

Description

General part information

Q-0D00V0 Series

Cable Assembly Coaxial BNC to HD-BNC RG-316 36.00" (914.40mm)

Documents

Technical documentation and resources

No documents available
