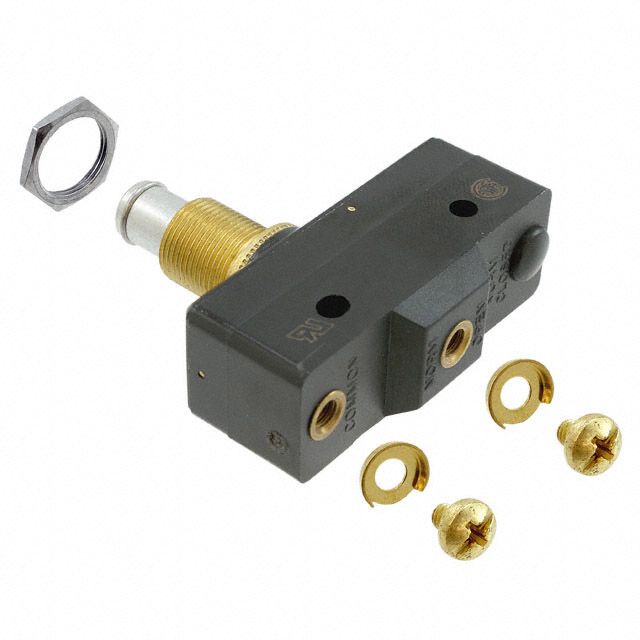

YE-2RQ27-A4
ObsoleteHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACT SPST-NO 25A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
YE-2RQ27-A4
ObsoleteHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACT SPST-NO 25A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | YE-2RQ27-A4 |
|---|---|
| Actuator Type | Overtravel Plunger |
| Circuit | SPST-NO |
| Current Rating (Amps) | 25 A |
| Differential Travel | 0.007 in |
| Differential Travel | 0.18 mm |
| Features | Steel Plunger |
| Mechanical Life | 20000000 Cycles |
| Operating Force [Max] | 624 gf |
| Operating Force [Min] | 397 gf |
| Operating Position | 0.859 in |
| Operating Position | 21.8 mm |
| Operating Temperature [Max] | 121 °C |
| Operating Temperature [Min] | -55 °C |
| Overtravel | 0.094 in |
| Overtravel | 2.4 mm |
| Pretravel | 0.05 in |
| Pretravel | 1.27 mm |
| Release Force | 283 gf |
| Switch Function | Off-Mom |
| Termination Style | Screw Terminal |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 47.08 | |
Description
General part information
YE-2RQ Series
Switch SPST-NO Panel Mount
