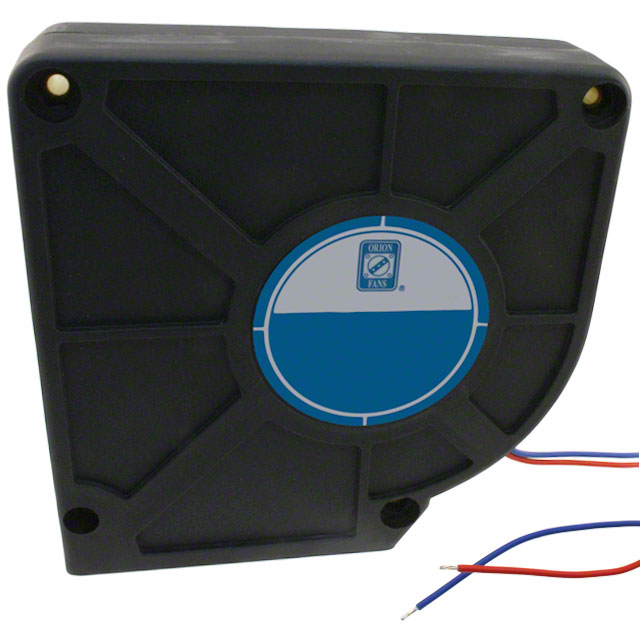

ODB600-12MB

Active

Orion Fans

FAN BLOWER, 120MM, 22CFM, 12VDC ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN

ODB600-12MB

Active

Orion Fans

FAN BLOWER, 120MM, 22CFM, 12VDC ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsTechnical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ODB600-12MB

Air Flow	25 CFM
Air Flow	0.7 mł/min
Bearing Type	Ball
Current Rating (Amps)	0.47 A
Fan Type	Blower
Material - Blade	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Material - Frame	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Noise	42 dB
Operating Temperature [Max]	80 C
Operating Temperature [Max]	80 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
RPM	2500 RPM
Size / Dimension	Square/Rounded
Size / Dimension [x]	120.5 mm
Size / Dimension [y]	120.5 mm
Static Pressure	0.47 in H2O
Static Pressure	117.1 Pa
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	14 V
Voltage Range [Min]	8 VDC
Width [y]	32 mm

ODB600PT Series

Part	Termination	Fan Type	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Current Rating (Amps)	Material - Blade	Voltage - Rated	Bearing Type	RPM	Static Pressure	Static Pressure	Width [y]	Material - Frame	Air Flow	Air Flow	Size / Dimension	Size / Dimension [x]	Size / Dimension [y]	Voltage Range [Min]	Voltage Range [Max]	Noise	Voltage - Rated [custom]
Orion Fans ODB600-12MB	2 Wire Leads	Blower	80 C	80 °C	-20 °C	-20 C	0.47 A	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	12 VDC	Ball	2500 RPM	0.47 in H2O	117.1 Pa	32 mm	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	25 CFM	0.7 mł/min	Square/Rounded	120.5 mm	120.5 mm	8 VDC	14 V	42 dB
Orion Fans ODB600-48HB	2 Wire Leads	Blower	80 C	80 °C	-20 °C	-20 C	150 mA			Ball	3000 RPM	0.59 in H2O	147 Pa	32 mm		35 CFM	0.98 m³/min	Square/Rounded	120.5 mm	120.5 mm			49 dB	48 VDC
Orion Fans ODB600-24HB	2 Wire Leads	Blower	80 C	80 °C	-20 °C	-20 C	370 mA	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	24 VDC	Ball	3000 RPM	0.59 in H2O	147 Pa	32 mm	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	35 CFM	0.98 m³/min	Square/Rounded	120.5 mm	120.5 mm	10 VDC	29 VDC	49 dB
Orion Fans ODB600-24MB	2 Wire Leads	Blower	80 C	80 °C	-20 °C	-20 C		Polybutylene Terephthalate (PBT) Fiberglass Reinforced	24 VDC	Ball	2500 RPM	0.47 in H2O	117.1 Pa	32 mm	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	25 CFM	0.7 mł/min	Square/Rounded	120.5 mm	120.5 mm	10 VDC	29 VDC	42 dB
Orion Fans ODB600-12LB	2 Wire Leads	Blower	80 C	80 °C	-20 °C	-20 C	0.2 A	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	12 VDC	Ball	1800 RPM	0.39 in H2O	97.1 Pa	32 mm	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	20 CFM	0.56 m³/min	Square/Rounded	120.5 mm	120.5 mm	8 VDC	14 V
Orion Fans ODB600-12HB	2 Wire Leads	Blower	80 C	80 °C	-20 °C	-20 C	600 mA	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	12 VDC	Ball	3000 RPM	0.59 in H2O	147 Pa	32 mm	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	35 CFM	0.98 m³/min	Square/Rounded	120.5 mm	120.5 mm	8 VDC	14 V	49 dB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 30.93
		10	$ 28.25
		40	$ 27.17
		80	$ 25.39
		120	$ 23.42
		280	$ 23.06
Newark	Each	1	$ 28.69
		5	$ 27.30
		10	$ 25.95
		25	$ 24.60
		50	$ 23.34
		100	$ 22.17

Description

General part information

ODB600PT Series

Fan Blower 12VDC Square/Rounded - 120.5mm L x 120.5mm H Ball 25.0 CFM (0.700m³/min) 2 Wire Leads

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet
