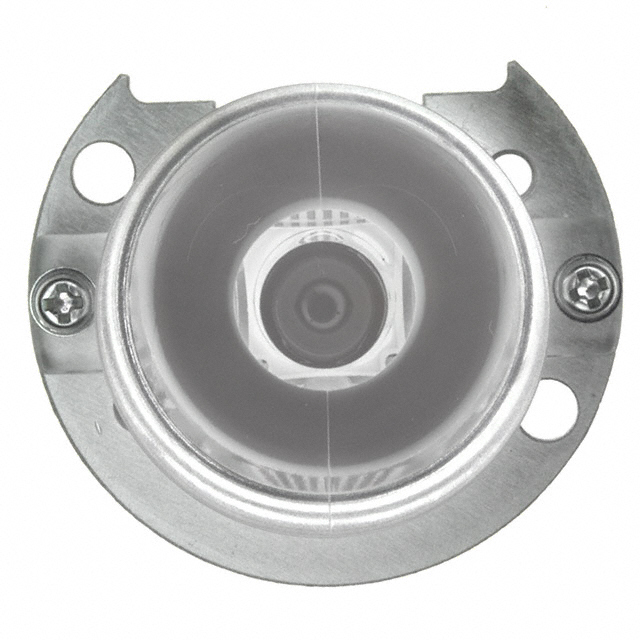

SIW3121N

Obsolete

Stanley Electric Co

LED MOD 3W-TYPE WM WH RND 3300K

Search across all available documentation for this part.

Obsolete

Stanley Electric Co

LED MOD 3W-TYPE WM WH RND 3300K

Technical Specifications

Parameters and characteristics for this part

Specification	SIW3121N

CCT (K)	3300 K
Color	White, Warm
Configuration	Round
Current - Max [Max]	150 mA
Current - Test	150 mA
Height [z]	20 mm
Lens Type	Flat
Lumens/Watt @ Current - Test	22 lm/W
Luminous Flux @ Current/Temperature	70 lm
Size / Dimension [diameter]	25 mm
Type	LED Module
Viewing Angle	25 °
Voltage - Forward (Vf) (Typ)	21 V

Part	Lumens/Watt @ Current - Test	Voltage - Forward (Vf) (Typ)	Luminous Flux @ Current/Temperature	Current - Test	Type	CCT (K)	Viewing Angle	Height [z]	Configuration	Size / Dimension [diameter]	Lens Type	Color	Current - Max [Max]
Stanley Electric Co SIW3121N	22 lm/W	21 V	70 lm	150 mA	LED Module	3300 K	25 °	20 mm	Round	25 mm	Flat	Warm White	150 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting COBs Engines Modules LED Module 3W-Type White, Warm Round
