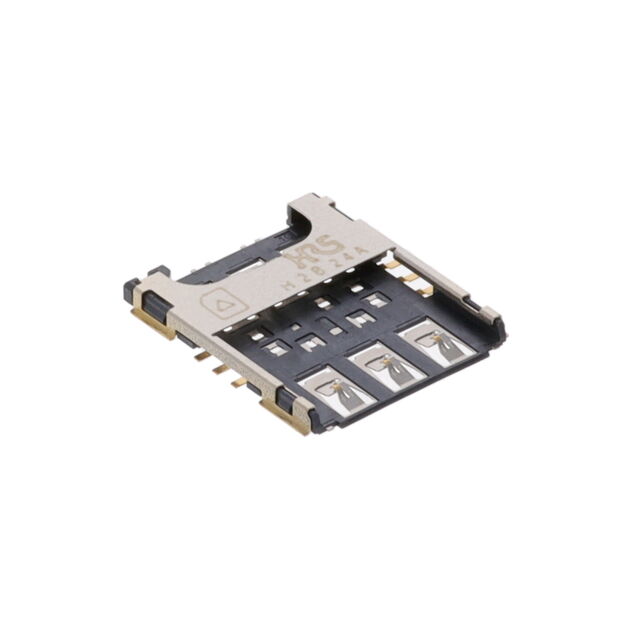

KP13CH-6S-SF(800)
ActiveHirose Electric USA, Inc.
CONN NANO SIM CARD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KP13CH-6S-SF(800) |
|---|---|
| Card Type | NANO SIM |
| Contact Finish | Gold |
| Features | Switch |
| Height Above Board [z] | 1.12 mm |
| Height Above Board [z] | 0.044 in |
| Insertion, Removal Method | Pull Out, Push In |
| Mounting Feature | Normal, Standard - Top |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions [custom] | 7 |
| Number of Positions [custom] | 6 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.05 | |
| 10 | $ 1.78 | |||
| 25 | $ 1.70 | |||
| 50 | $ 1.67 | |||
| 100 | $ 1.59 | |||
| 250 | $ 1.44 | |||
| 500 | $ 1.33 | |||
| 1000 | $ 1.14 | |||
| Digi-Reel® | 1 | $ 2.05 | ||
| 10 | $ 1.78 | |||
| 25 | $ 1.70 | |||
| 50 | $ 1.67 | |||
| 100 | $ 1.59 | |||
| 250 | $ 1.44 | |||
| 500 | $ 1.33 | |||
| 1000 | $ 1.14 | |||
| Tape & Reel (TR) | 2000 | $ 1.01 | ||
| 4000 | $ 0.98 | |||
| 6000 | $ 0.93 | |||
| 10000 | $ 0.91 | |||
Description
General part information
KP13 Series
7 (6 + 1) Position Card Connector NANO SIM Surface Mount, Right Angle Gold
