0395038004

Active

Molex

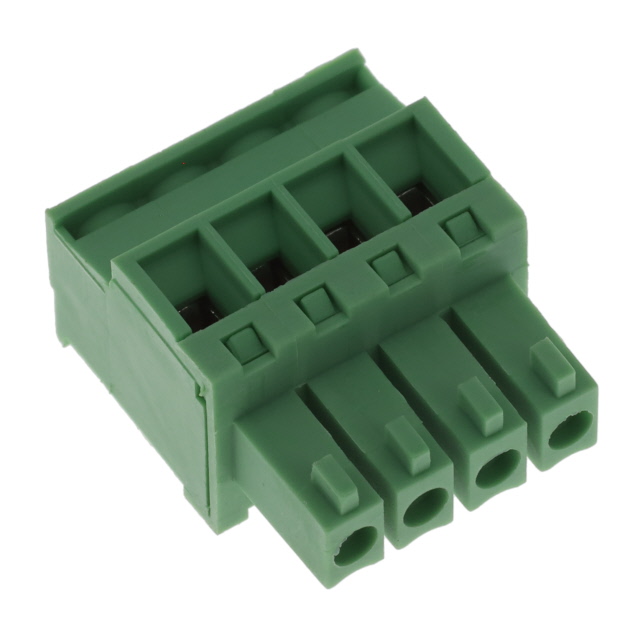

TERM BLOCK PLUG 4POS 90DEG 3.5MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0395038004

Active

Molex

TERM BLOCK PLUG 4POS 90DEG 3.5MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0395038004

Color	Green
Contact Material	Phosphor Bronze
Contact Mating Finish	Tin
Current - UL	8 A
Insulation Height	18.8 mm
Insulation Height	0.74 in
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	4
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	3.5 mm
Pitch [x]	0.138 in
Plug Wire Entry	90 °
Positions Per Level	4
Termination Style	Screw - Rising Cage Clamp
Torque - Screw	0.23 Nm
Torque - Screw	2 Lb-In
Type	Plug, Female Sockets
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	30 AWG
Wire Gauge or Range - AWG [Min]	16 AWG
Wire Strip Length	6.5 mm

039503 Series

Part	Number of Levels	Material Flammability Rating	Termination Style	Voltage - UL	Number of Positions	Type	Torque - Screw	Torque - Screw	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Material	Current - UL	Color	Pitch [x]	Pitch [x]	Positions Per Level	Plug Wire Entry	Contact Mating Finish	Insulation Height	Insulation Height	Wire Strip Length
Molex 0395032014	1	UL94 V-0	Screw - Rising Cage Clamp	300 V	14	Plug Female Sockets	0.23 Nm	2 Lb-In	30 AWG	16 AWG	-40 °C	115 °C	Free Hanging (In-Line)	Phosphor Bronze	8 A	Black	3.5 mm	0.138 in	14	270 °	Tin	18.8 mm	0.74 in	6.5 mm
Molex 0395032006	1	UL94 V-0	Screw - Rising Cage Clamp	300 V	6	Plug Female Sockets	0.23 Nm	2 Lb-In	30 AWG	16 AWG	-40 °C	115 °C	Free Hanging (In-Line)	Phosphor Bronze	8 A	Black	3.5 mm	0.138 in	6	270 °	Tin	18.8 mm	0.74 in	6.5 mm
Molex 0395038004	1	UL94 V-0	Screw - Rising Cage Clamp	300 V	4	Plug Female Sockets	0.23 Nm	2 Lb-In	30 AWG	16 AWG	-40 °C	115 °C	Free Hanging (In-Line)	Phosphor Bronze	8 A	Green	3.5 mm	0.138 in	4	90 °	Tin	18.8 mm	0.74 in	6.5 mm
Molex 0395032002	1	UL94 V-0	Screw - Rising Cage Clamp	300 V	2	Plug Female Sockets	0.23 Nm	2 Lb-In	30 AWG	16 AWG	-40 °C	115 °C	Free Hanging (In-Line)	Phosphor Bronze	8 A	Black	3.5 mm	0.138 in	2	270 °	Tin	18.8 mm	0.74 in	6.5 mm
Molex 0395038014	1	UL94 V-0	Screw - Rising Cage Clamp	300 V	14	Plug Female Sockets	0.23 Nm	2 Lb-In	30 AWG	16 AWG	-40 °C	115 °C	Free Hanging (In-Line)	Phosphor Bronze	8 A	Green	3.5 mm	0.138 in	14	90 °	Tin	18.8 mm	0.74 in	6.5 mm
Molex 0395038006	1	UL94 V-0	Screw - Rising Cage Clamp	300 V	6	Plug Female Sockets	0.23 Nm	2 Lb-In	30 AWG	16 AWG	-40 °C	115 °C	Free Hanging (In-Line)	Phosphor Bronze	8 A	Green	3.5 mm	0.138 in	6	90 °	Tin	18.8 mm	0.74 in	6.5 mm
Molex 0395033006	1	UL94 V-0	Screw - Rising Cage Clamp	300 V	6	Plug Female Sockets	0.23 Nm	2 Lb-In	30 AWG	16 AWG	-40 °C	115 °C	Free Hanging (In-Line)	Phosphor Bronze	8 A	Black	3.5 mm	0.138 in	6	90 °	Tin	18.8 mm	0.74 in	6.5 mm
Molex 0395033003	1	UL94 V-0	Screw - Rising Cage Clamp	300 V		Plug Female Sockets	0.23 Nm	2 Lb-In	30 AWG	16 AWG	-40 °C	115 °C	Free Hanging (In-Line)	Phosphor Bronze	8 A	Black	3.5 mm	0.138 in	3	90 °	Tin	18.8 mm	0.74 in	6.5 mm
Molex 0395037006	1	UL94 V-0	Screw - Rising Cage Clamp	300 V	6	Plug Female Sockets	0.23 Nm	2 Lb-In	30 AWG	16 AWG	-40 °C	115 °C	Free Hanging (In-Line)	Phosphor Bronze	8 A	Green	3.5 mm	0.138 in	6	270 °	Tin	18.8 mm	0.74 in	6.5 mm
Molex 0395037017	1	UL94 V-0	Screw - Rising Cage Clamp	300 V		Plug Female Sockets	0.23 Nm	2 Lb-In	30 AWG	16 AWG	-40 °C	115 °C	Free Hanging (In-Line)	Phosphor Bronze	8 A	Green	3.5 mm	0.138 in	17	270 °	Tin	18.8 mm	0.74 in	6.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.66
		10	$ 1.26
		25	$ 1.16
		50	$ 1.05
		100	$ 1.02
		250	$ 0.89
		960	$ 0.74
		1920	$ 0.69
		5760	$ 0.65

Description

General part information

039503 Series

4 Position Terminal Block Plug, Female Sockets 0.138" (3.50mm) 90° Free Hanging (In-Line)
