XCR3064XL-7CP56I

Obsolete

AMD

IC CPLD 64MC 7NS 56CSBGA

Search across all available documentation for this part.

Obsolete

AMD

IC CPLD 64MC 7NS 56CSBGA

Technical Specifications

Parameters and characteristics for this part

Specification	XCR3064XL-7CP56I

Delay Time tpd(1) Max [Max]	7 ns
Mounting Type	Surface Mount
Number of Gates	1500
Number of I/O	48
Number of Logic Elements/Blocks	4
Number of Macrocells	64
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C

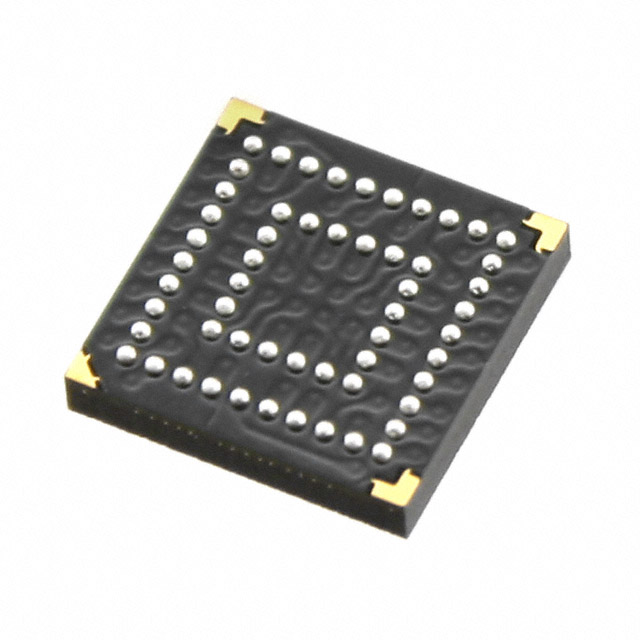

Package / Case	CSPBGA, 56-LFBGA
Programmable Type	In System Programmable
Supplier Device Package	56-CSBGA (6x6)
Voltage Supply - Internal [Max]	3.6 V
Voltage Supply - Internal [Min]	2.7 V

Part	Number of Macrocells	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Number of Gates	Number of Logic Elements/Blocks	Supplier Device Package	Programmable Type	Number of I/O	Delay Time tpd(1) Max [Max]	Mounting Type	Voltage Supply - Internal [Min]	Voltage Supply - Internal [Max]
AMD XCR3064XL-7CP56I	64	56-LFBGA CSPBGA	85 °C	-40 °C	1500	4	56-CSBGA (6x6)	In System Programmable	48	7 ns	Surface Mount	2.7 V	3.6 V
AMD XCR3064XL-10VQ44I	64	44-TQFP	85 °C	-40 °C	1500	4	44-VQFP (10x10)	In System Programmable	36	9.1 ns	Surface Mount	2.7 V	3.6 V
AMD XCR3064XL-6VQ44C	64	44-TQFP	70 °C	0 °C	1500	4	44-VQFP (10x10)	In System Programmable	36	5.5 ns	Surface Mount	3 V	3.6 V
AMD XCR3064XL-7CS48C	64	48-FBGA CSPBGA	70 °C	0 °C	1500	4	48-CSBGA (7x7)	In System Programmable	40	7 ns	Surface Mount	3 V	3.6 V
AMD XCR3064XL-10VQG100C	64	100-TQFP	70 °C	0 °C	1500	4	100-VQFP (14x14)	In System Programmable	68 I/O	9.1 ns	Surface Mount	3 V	3.6 V
AMD XCR3064XL-6VQG44C	64	44-TQFP	70 °C	0 °C	1500	4	44-VQFP (10x10)	In System Programmable	36	5.5 ns	Surface Mount	3 V	3.6 V
AMD XCR3064XL-7CSG48C	64	48-FBGA CSPBGA	70 °C	0 °C	1500	4	48-CSBGA (7x7)	In System Programmable	40	7 ns	Surface Mount	3 V	3.6 V
AMD XCR3064XL-10VQ100I	64	100-TQFP	85 °C	-40 °C	1500	4	100-VQFP (14x14)	In System Programmable	68 I/O	9.1 ns	Surface Mount	2.7 V	3.6 V
AMD XCR3064XL-10VQG44C	64	44-TQFP	70 °C	0 °C	1500	4	44-VQFP (10x10)	In System Programmable	36	9.1 ns	Surface Mount	3 V	3.6 V
AMD XCR3064XL-6CPG56C	64	56-LFBGA CSPBGA	70 °C	0 °C	1500	4	56-CSBGA (6x6)	In System Programmable	48	5.5 ns	Surface Mount	3 V	3.6 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

IC CPLD 64MC 7NS 56CSBGA

Technical documentation and resources

No documents available
