857-007-554-108
ActiveEDAC Inc.

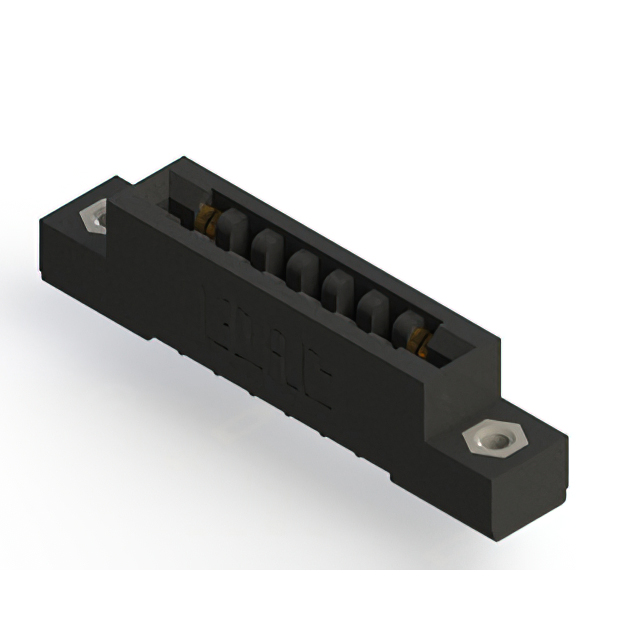

CONN EDGE DUAL FMALE 14POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
857-007-554-108
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 14POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 857-007-554-108 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 14 |
| Number of Positions/Bay/Row [custom] | 7 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 1 |
857-007 Series
...
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Termination Rows | Termination | Card Type | Contact Material | Flange Feature | Contact Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish | Material - Insulation | Read Out | Mounting Type | Number of Positions/Bay/Row [custom] | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Gender | Pitch [x] | Pitch [x] | Color | Number of Rows | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 125 °C | -40 °C | 1 | Wire Wrap | Non Specified - Single Edge | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Polyphenylene Sulfide (PPS) | Single | Through Hole | 7 | 10 Áin | 0.25 Ám | 7 | Female | 0.156 in | 3.96 mm | Black | 1 | ||
EDAC Inc. | 125 °C | -40 °C | 1 | Solder | Non Specified - Single Edge | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Polyphenylene Sulfide (PPS) | Single | Through Hole Right Angle | 7 | 10 Áin | 0.25 Ám | 7 | Female | 0.156 in | 3.96 mm | Black | 1 | ||
EDAC Inc. | 125 °C | -40 °C | 1 | Solder Eyelet(s) | Non Specified - Single Edge | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Polyphenylene Sulfide (PPS) | Single | Through Hole | 7 | 10 Áin | 0.25 Ám | 7 | Female | 0.156 in | 3.96 mm | Black | 1 | ||
EDAC Inc. | 125 °C | -40 °C | 1 | Wire Wrap | Non Specified - Single Edge | Copper Alloy | Flush Mount Top Opening Unthreaded | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Tin | Polyphenylene Sulfide (PPS) | Single | Through Hole | 7 | 7 | Female | 0.156 in | 3.96 mm | Black | 1 | 3.96 mm | 0.156 in | ||
EDAC Inc. | 125 °C | -40 °C | 1 | Solder | Non Specified - Single Edge | Copper Alloy | Flush Mount M3 Threaded Insert Top Opening | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Tin | Polyphenylene Sulfide (PPS) | Single | Through Hole Right Angle | 7 | 7 | Female | 0.156 in | 3.96 mm | Black | 1 | ||||
EDAC Inc. | 125 °C | -40 °C | 1 | Solder | Non Specified - Dual Edge | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Polyphenylene Sulfide (PPS) | Dual | Through Hole Right Angle | 7 | 10 Áin | 0.25 Ám | 14 | Female | 0.156 in | 3.96 mm | Black | 2 | ||
EDAC Inc. | 125 °C | -40 °C | 1 | Wire Wrap | Non Specified - Single Edge | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Polyphenylene Sulfide (PPS) | Single | Through Hole | 7 | 10 Áin | 0.25 Ám | 7 | Female | 0.156 in | 3.96 mm | Black | 1 | ||
EDAC Inc. | 125 °C | -40 °C | 1 | Solder | Non Specified - Dual Edge | Copper Alloy | Flush Mount Top Opening Unthreaded | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Polyphenylene Sulfide (PPS) | Dual | Through Hole Right Angle | 7 | 10 Áin | 0.25 Ám | 14 | Female | 0.156 in | 3.96 mm | Black | 2 | 3.96 mm | 0.156 in |
EDAC Inc. | 125 °C | -40 °C | 1 | Solder Eyelet(s) | Non Specified - Single Edge | Copper Alloy | Floating Bobbin Flush Mount | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Polyphenylene Sulfide (PPS) | Single | Through Hole | 7 | 10 Áin | 0.25 Ám | 7 | Female | 0.156 in | 3.96 mm | Black | 1 | 2.95 mm | 0.116 in |
EDAC Inc. | 125 °C | -40 °C | 1 | Solder | Non Specified - Single Edge | Copper Alloy | Flush Mount Top Opening Unthreaded | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Tin | Polyphenylene Sulfide (PPS) | Single | Through Hole Right Angle | 7 | 7 | Female | 0.156 in | 3.96 mm | Black | 1 | 3.25 mm | 0.128 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 109.53 | |
Description
General part information
857-007 Series
14 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
