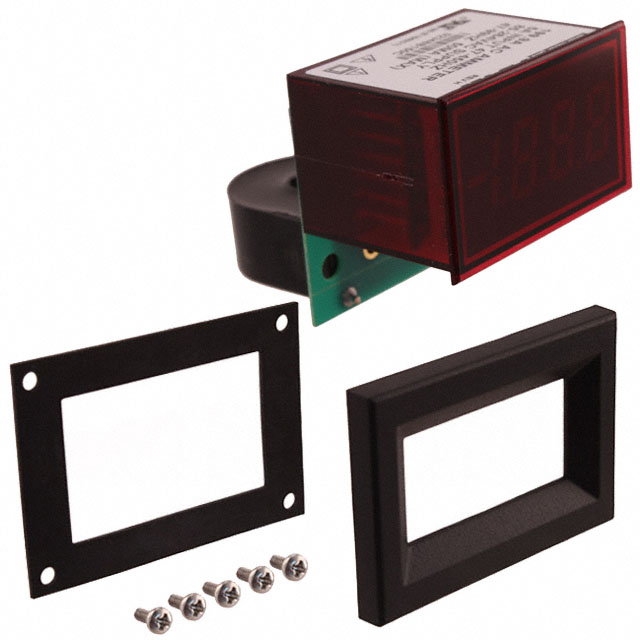

ACA5-20PC-4-AC1-RL-C

Obsolete

Murata Power Solutions Inc.

AMMETER 0-150A LED PANEL MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ACA5-20PC-4-AC1-RL-C

Obsolete

Murata Power Solutions Inc.

AMMETER 0-150A LED PANEL MOUNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ACA5-20PC-4-AC1-RL-C

Display Characters - Height	9.4 mm
Display Characters - Height	0.37 in
Display Type	LED - Red Characters
Features	Built In Current Transformer (Secondary)
Measuring Range [Max]	150 A
Measuring Range [Min]	0 A
Measuring Type	Current
Mounting Type	Panel Mount - Bezel
Number of Characters Per Row	3.5
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	0 °C
Panel Cutout Dimensions [x]	33.93 mm
Panel Cutout Dimensions [y]	21.29 mm
Termination Style	Screw Terminal
Type	Ammeter
Voltage - Supply [Max]	264 VAC
Voltage - Supply [Min]	85 VAC
Weight	0.079 lb
Weight	35.83 g

ACA5-20PC Series

Part	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Operating Temperature [Max]	Weight	Weight	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Termination Style	Type	Measuring Type	Display Characters - Height	Display Characters - Height	Features	Display Type	Measuring Range [Min]	Measuring Range [Max]	Number of Characters Per Row
Murata Power Solutions Inc. ACA5-20PC-4-AC1-RL-C	33.93 mm	21.29 mm	60 °C	0.079 lb	35.83 g	Panel Mount - Bezel	85 VAC	264 VAC	Screw Terminal	Ammeter	Current	9.4 mm	0.37 in	Built In Current Transformer (Secondary)	LED - Red Characters	0 A	150 A	3.5
Murata Power Solutions Inc. ACA5-20PC-1-AC1-RL-C	33.93 mm	21.29 mm	60 °C	0.079 lb	35.83 g	Panel Mount - Bezel	85 VAC	264 VAC	Screw Terminal	Ammeter	Current	9.4 mm	0.37 in	Built In Current Transformer (Secondary)	LED - Red Characters	0 A	50 A	3.5
Murata Power Solutions Inc. ACA5-20PC-3-AC1-RL-C	33.93 mm	21.29 mm	60 °C	0.079 lb	35.83 g	Panel Mount - Bezel	85 VAC	264 VAC	Screw Terminal	Ammeter	Current	9.4 mm	0.37 in	Built In Current Transformer (Secondary)	LED - Red Characters	0 A	100 A	3.5
Murata Power Solutions Inc. ACA5-20PC-5-AC1-RL-C	33.93 mm	21.29 mm	60 °C	0.079 lb	35.83 g	Panel Mount - Bezel	85 VAC	264 VAC	Screw Terminal	Ammeter	Current	9.4 mm	0.37 in	Built In Current Transformer (Secondary)	LED - Red Characters	0 A	199.9 A	3.5
Murata Power Solutions Inc. ACA5-20PC-9-AC1-RL-C	33.93 mm	21.29 mm	60 °C	0.079 lb	35.83 g	Panel Mount - Bezel	85 VAC	264 VAC	Screw Terminal	Ammeter	Current	9.4 mm	0.37 in	Built In Current Transformer (Secondary)	LED - Red Characters	0 A	500 A	3.5
Murata Power Solutions Inc. ACA5-20PC-4-DC1-RL-C	33.93 mm	21.29 mm	60 °C	0.079 lb	35.83 g	Panel Mount - Bezel	4.75 V	40 VDC	Screw Terminal	Ammeter	Current	9.4 mm	0.37 in	Built In Current Transformer (Secondary)	LED - Red Characters	0 A	150 A	3.5
Murata Power Solutions Inc. ACA5-20PC-2-AC1-RL-C	33.93 mm	21.29 mm	60 °C	0.079 lb	35.83 g	Panel Mount - Bezel	85 VAC	264 VAC	Screw Terminal	Ammeter	Current	9.4 mm	0.37 in	Built In Current Transformer (Secondary)	LED - Red Characters	0 A	75 A	3.5
Murata Power Solutions Inc. ACA5-20PC-8-AC1-RL-C	33.93 mm	21.29 mm	60 °C	0.079 lb	35.83 g	Panel Mount - Bezel	85 VAC	264 VAC	Screw Terminal	Ammeter	Current	9.4 mm	0.37 in	Built In Current Transformer (Secondary)	LED - Red Characters	0	400 A	3.5
Murata Power Solutions Inc. ACA5-20PC-11-AC1-RL-C	33.93 mm	21.29 mm	60 °C	0.079 lb	35.83 g	Panel Mount - Bezel	85 VAC	264 VAC	Screw Terminal	Ammeter	Current	9.4 mm	0.37 in	Built In Current Transformer (Secondary)	LED - Red Characters	0 A	750 A	3.5

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

ACA5-20PC Series

Ammeter LED - Red Characters Display Panel Mount - Bezel
