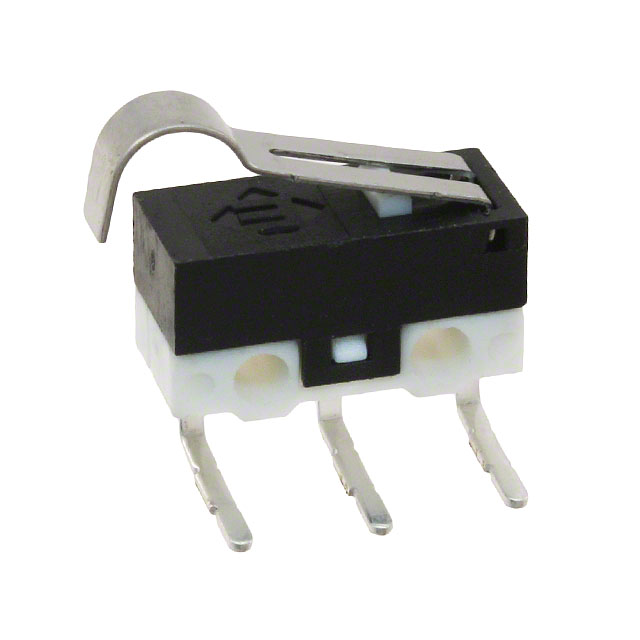

SS075Q103F030V2A

Active

E-Switch

SWITCH SNAP ACT SPDT 0.1A 125V

Search across all available documentation for this part.

Active

E-Switch

SWITCH SNAP ACT SPDT 0.1A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Switch Function	Electrical Life	Mechanical Life	Release Force	Operating Position [x]	Operating Position [x]	Current Rating (Amps)	Pretravel	Pretravel	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Operating Force	Voltage Rating - AC	Circuit	Actuator Type	Mounting Type	Operating Position	Operating Position
E-Switch SS075Q103F030V2A	On-Mom	100000 Cycles	1000000 Cycles	10 gf	9.7 mm	0.38 in	100 mA	0.053 in	1.35 mm	-25 °C	75 ░C	PC Pin	30 gf	125 V	SPDT	Lever Simulated Roller	Through Hole Right Angle
E-Switch SS075Q102F015P1A	On-Mom	100000 Cycles	1000000 Cycles				100 mA	0.08 in	2 mm	-25 °C	75 ░C	PC Pin	15 gf	125 V	SPDT	Lever Simulated Roller	Through Hole	10.8 mm	0.425 "
E-Switch SS075Q103F050S1A	On-Mom	100000 Cycles	1000000 Cycles	15 gf	9.7 mm	0.38 in	100 mA	0.053 in	1.35 mm	-25 °C	75 ░C	Solder Lug	50 gf	125 V	SPDT	Lever Simulated Roller	Chassis Mount
E-Switch SS075Q102F035V1A	On-Mom	100000 Cycles	1000000 Cycles	10 gf			100 mA	0.08 in	2 mm	-25 °C	75 ░C	PC Pin	35 gf	125 V	SPDT	Lever Simulated Roller	Through Hole Right Angle	10.8 mm	0.425 "
E-Switch SS075Q101F030P1A	On-Mom	100000 Cycles	1000000 Cycles	10 gf			100 mA	0.063 in	1.6 mm	-25 °C	75 ░C	PC Pin	30 gf	125 V	SPDT	Lever Straight	Through Hole	8.8 mm	0.345 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Switch SPDT Through Hole, Right Angle
