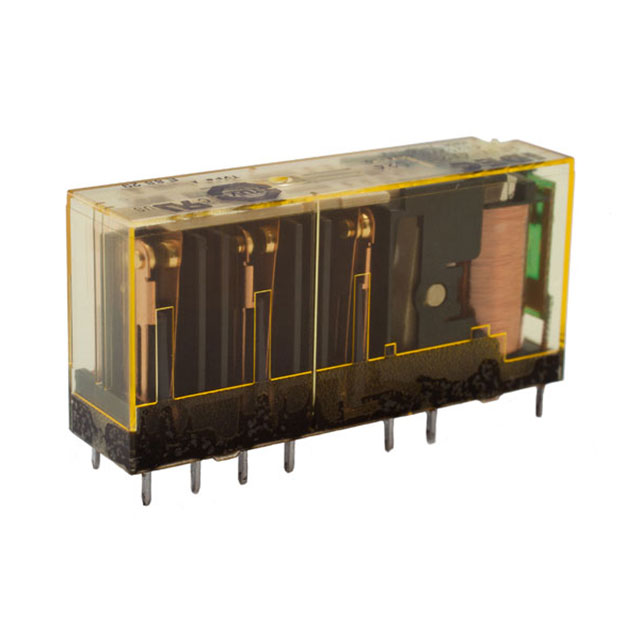

RF1V-3A1BLD1-D24

Active

IDEC

SAFETY RELAYS FORCE GUIDED 3NO1NC DC24 CEMF

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RF1V-3A1BLD1-D24

Active

IDEC

SAFETY RELAYS FORCE GUIDED 3NO1NC DC24 CEMF

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RF1V-3A1BLD1-D24

Coil Current	15 mA
Coil Power	360 mW
Coil Resistance	1.6 kOhms
Coil Voltage	24 VDC
Contact Form	4PST-3NO/1NC (3 Form A, 1 Form B)
Contact Material	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	6 A
Features	Lighted Indicator, Diode
Mounting Type	Through Hole
Must Operate Voltage	18 VDC
Must Release Voltage	2.4 VDC
Operate Time	20 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Release Time	20 ms
Switching Voltage [Max]	30 VDC, 250 VAC
Termination Style	PC Pin

RF1V Series

Safety Relays Force Guided 3NO3NC DC24 CEMF

Part	Contact Material	Coil Current	Switching Voltage [Max]	Mounting Type	Termination Style	Coil Power	Coil Resistance	Operate Time	Coil Voltage	Contact Form	Contact Rating (Current)	Operating Temperature [Max]	Operating Temperature [Min]	Release Time	Must Operate Voltage	Must Release Voltage	Features
IDEC RF1V-3A1B-D24	Silver Tin Oxide (AgSnO)	15 mA	30 VDC 250 VAC	Through Hole	PC Pin	360 mW	1.6 kOhms	20 ms	24 VDC	4PST-3NO/1NC (3 Form A 1 Form B)	6 A	85 °C	-40 °C	20 ms	18 VDC	2.4 VDC
IDEC RF1V-2A2BLD1-D48	Gold (Au) Silver Tin Oxide (AgSnO)	7.5 mA	30 VDC 250 VAC	Through Hole	PC Pin	360 mW	6.4 kOhms	20 ms	48 VDC	4PST-2NO/2NC (2 Form A 2 Form B)	6 A	85 °C	-40 °C	20 ms	36 VDC	4.8 VDC	Diode Lighted Indicator
IDEC RF1V-3A1BLD1-D24	Silver Tin Oxide (AgSnO)	15 mA	30 VDC 250 VAC	Through Hole	PC Pin	360 mW	1.6 kOhms	20 ms	24 VDC	4PST-3NO/1NC (3 Form A 1 Form B)	6 A	85 °C	-40 °C	20 ms	18 VDC	2.4 VDC	Diode Lighted Indicator
IDEC RF1V-3A3BLD1-D48	Gold (Au) Silver Tin Oxide (AgSnO)	10.4 mA	30 VDC 250 VAC	Through Hole	PC Pin		4.608 kOhms	20 ms	48 VDC		6 A	85 °C	-40 °C	20 ms	36 VDC	4.8 VDC	Diode Lighted Indicator
IDEC RF1V-2A2BLD1-D12	Gold (Au) Silver Tin Oxide (AgSnO)	30 mA	30 VDC 250 VAC	Through Hole	PC Pin	360 mW	400 Ohms	20 ms	12 VDC	4PST-2NO/2NC (2 Form A 2 Form B)	6 A	85 °C	-40 °C	20 ms	9 VDC	1.2 VDC	Diode Lighted Indicator
IDEC RF1V-2A2BL-D24	Silver Tin Oxide (AgSnO)	15 mA	30 VDC 250 VAC	Through Hole	PC Pin	360 mW	1.6 kOhms	20 ms	24 VDC	4PST-2NO/2NC (2 Form A 2 Form B)	6 A	85 °C	-40 °C	20 ms	18 VDC	2.4 VDC	Lighted Indicator
IDEC RF1V-5A1BLD1-D48	Gold (Au) Silver Tin Oxide (AgSnO)	10.4 mA	30 VDC 250 VAC	Through Hole	PC Pin		4.608 kOhms	20 ms	48 VDC	6PST-5NO/1NC (5 Form A 1 Form B)	6 A	85 °C	-40 °C	20 ms	36 VDC	4.8 VDC	Diode Lighted Indicator
IDEC RF1V-3A3BLD1-D24	Silver Tin Oxide (AgSnO)	20.8 mA	30 VDC 250 VAC	Through Hole	PC Pin		1.15 kOhms	20 ms	24 VDC		6 A	85 °C	-40 °C	20 ms	18 VDC	2.4 VDC	Diode Lighted Indicator
IDEC RF1V-5A1BLD1-D24	Silver Tin Oxide (AgSnO)	20.8 mA	30 VDC 250 VAC	Through Hole	PC Pin		1.15 kOhms	20 ms	24 VDC	6PST-5NO/1NC (5 Form A 1 Form B)	6 A	85 °C	-40 °C	20 ms	18 VDC	2.4 VDC	Diode Lighted Indicator
IDEC RF1V-2A2BLD1-D24	Silver Tin Oxide (AgSnO)	15 mA	30 VDC 250 VAC	Through Hole	PC Pin	360 mW	1.6 kOhms	20 ms	24 VDC	4PST-2NO/2NC (2 Form A 2 Form B)	6 A	85 °C	-40 °C	20 ms	18 VDC	2.4 VDC	Diode Lighted Indicator

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 44.84
		10	$ 39.17
		25	$ 37.11
		50	$ 35.63
		100	$ 34.21
		250	$ 32.42
Sager	N/A	1	$ 40.41
		4	$ 37.30
		11	$ 35.65
		22	$ 34.63
		45	$ 33.67

Description

General part information

RF1V Series

Safety Relays Force Guided 3NO3NC DC24 CEMF
