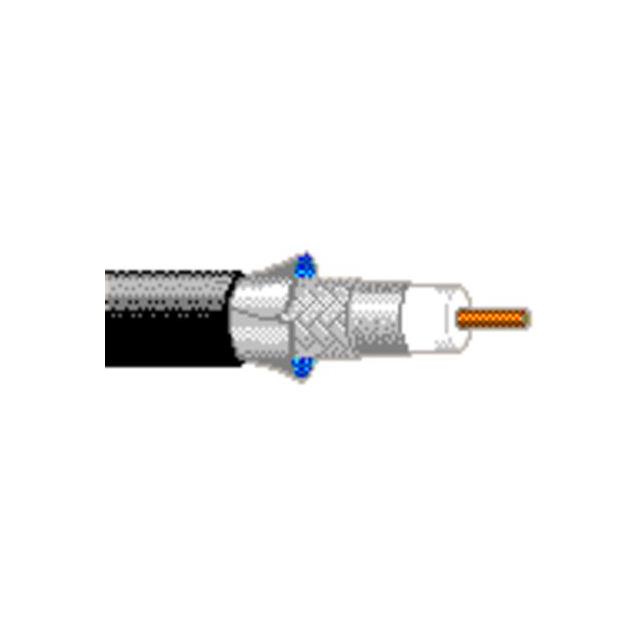

1804A U4F500

Active

Belden Inc.

4 #28 STR PP SHLD PVC

Search across all available documentation for this part.

Active

Belden Inc.

4 #28 STR PP SHLD PVC

Technical Specifications

Parameters and characteristics for this part

Specification	1804A U4F500

Cable Type	Microphone
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper Alloy, Silver Coated
Conductor Strand [custom]	19
Conductor Strand [custom]	40 AWG
Jacket (Insulation) Diameter [diameter]	0.115 in
Jacket (Insulation) Diameter [diameter]	2.92 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.356 mm
Jacket (Insulation) Thickness	0.014 in
Jacket Color	Beige
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	4
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-30 ░C
Shield Coverage	80 %
Shield Material	Copper, Tinned
Shield Type	Braid
Usage	Audio
Voltage	100 V
Wire Gauge	28 AWG

Part	Wire Gauge	Cable Type	Voltage	Length [x]	Length [x]	Usage	Shield Material	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand [custom]	Shield Type	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Number of Conductors	Jacket Color	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Coverage
Belden Inc. 1804A U4F500	28 AWG	Microphone	100 V	500 '	152.4 m	Audio	Copper Tinned	Poly-Vinyl Chloride (PVC)	19	40 AWG	Braid	Copper Alloy Silver Coated	0.115 in	2.92 mm	Polypropylene (PP)	-30 ░C	60 °C	4	Beige	0.356 mm	0.014 in	80 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

4 (1 Twisted Quad) Conductor Microphone Cable Beige 28 AWG Braid 500.0' (152.4m)
