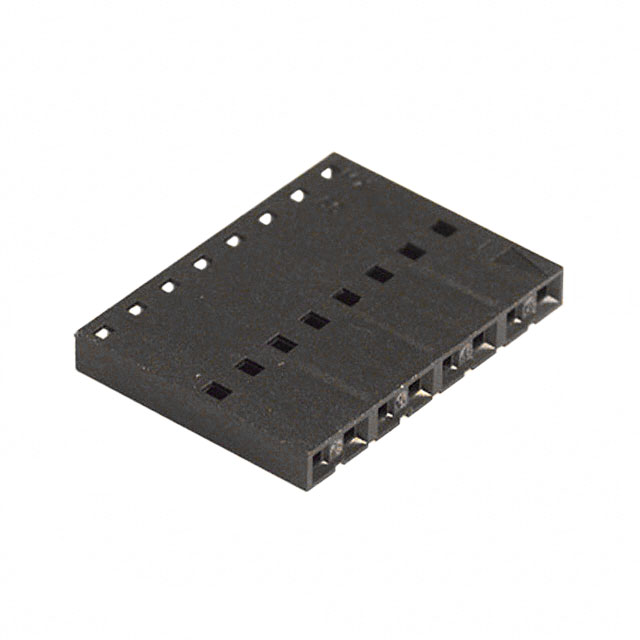

0050579008

Active

Molex

CONN RCPT HSG 8POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

Documents70066, 70058 SL Test Summary 70058 Series SL Terminal Prod Spec

0050579008

Active

Molex

CONN RCPT HSG 8POS 2.54MM

Deep-Dive with AI

Documents70066, 70058 SL Test Summary 70058 Series SL Terminal Prod Spec

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0050579008

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Insulation Material	Polyester, Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	8
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in

005057 Series

...

Part	Connector Type	Fastening Type	Insulation Material	Number of Positions	Pitch [x]	Pitch [x]	Number of Rows	Mounting Type	Color	Contact Type	Note	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Features
Molex 0050579413	Receptacle	Latch Lock	Polyester Glass Filled	13	2.54 mm	0.1 in	1	Free Hanging (In-Line)	Black	Female Socket	Contacts Not Included	Crimp	-40 °C	105 ░C
Molex 0050579216	Receptacle		Polyester Glass Filled		2.54 mm	0.1 in	1	Free Hanging (In-Line)	Black	Female Socket	Contacts Not Included	Crimp	-40 °C	105 ░C	16
Molex 0050579008	Receptacle		Polyester Glass Filled	8	2.54 mm	0.1 in	1	Free Hanging (In-Line)	Black	Female Socket	Contacts Not Included	Crimp	-40 °C	105 ░C
Molex 0050578910	Receptacle	Latch Lock		10	2.54 mm	0.1 in	1	Free Hanging (In-Line)	Black	Female Socket	Contacts Not Included	Crimp
Molex 0050578905	Receptacle	Latch Lock			2.54 mm	0.1 in	1	Free Hanging (In-Line)	Black	Female Socket	Contacts Not Included	Crimp
Molex 0050579210	Receptacle		Polyester Glass Filled	10	2.54 mm	0.1 in	1	Free Hanging (In-Line)	Black	Female Socket	Contacts Not Included	Crimp	-40 °C	105 ░C
Molex 0050579203	Receptacle		Polyester Glass Filled		2.54 mm	0.1 in	1	Free Hanging (In-Line)	Black	Female Socket	Contacts Not Included	Crimp	-40 °C	105 ░C		Polarizing Key
Molex 0050579322	Receptacle		Polyester Glass Filled	22 positions	2.54 mm	0.1 in	1	Free Hanging (In-Line)	Black	Female Socket	Contacts Not Included	Crimp	-40 °C	105 ░C
Molex 0050579324	Receptacle		Polyester Glass Filled	24	2.54 mm	0.1 in	1	Free Hanging (In-Line)	Black	Female Socket	Contacts Not Included	Crimp	-40 °C	105 ░C
Molex 0050579505	Receptacle	Locking Ramp	Polyester Glass Filled		2.54 mm	0.1 in	1	Free Hanging (In-Line)	Black	Female Socket	Contacts Not Included	Crimp	-40 °C	105 ░C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.49
		10	$ 0.41
		100	$ 0.32
		1000	$ 0.27

Description

General part information

005057 Series

8 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)

Documents

Technical documentation and resources

70066, 70058 SL Test Summary

70058 Series SL Terminal Prod Spec

Datasheet
