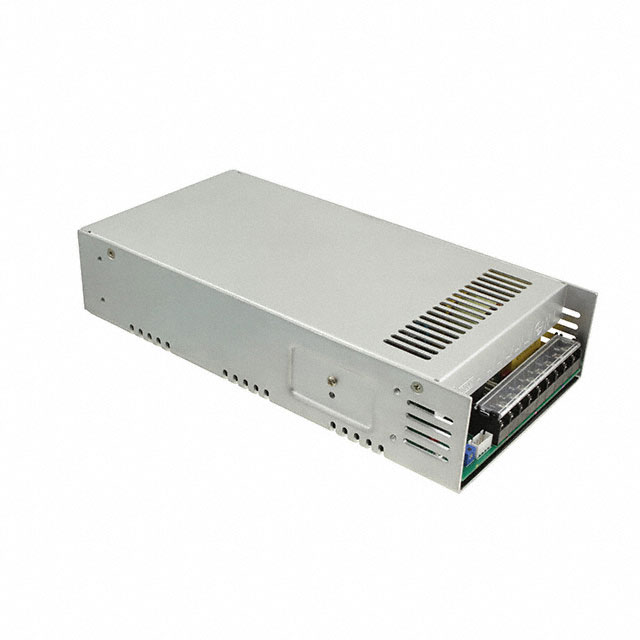

LCL500PS27

Active

XP POWER

AC/DC CONVERTER 27V 500W

Search across all available documentation for this part.

Active

XP POWER

AC/DC CONVERTER 27V 500W

Technical Specifications

Parameters and characteristics for this part

Specification	LCL500PS27

Applications	ITE (Commercial)
Current - Output 1	18.5 A
Efficiency	88 %
Features	DC Input Capable, Universal Input, PFC, Adjustable Output, Remote On/Off, Remote Sense
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	500 W
Size / Dimension [x]	250 mm
Size / Dimension [x]	9.84 "
Size / Dimension [y]	127 mm
Size / Dimension [y]	5 "
Size / Dimension [z]	2.08 in
Size / Dimension [z]	53 mm
Type	Enclosed
Voltage - Isolation	3000 V
Voltage - Output 1	27 V

Part	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Features	Power (Watts)	Number of Outputs	Type	Mounting Type	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Current - Output 1	Minimum Load Required	Voltage - Output 1	Applications
XP POWER LCL500PS27	2.08 in	250 mm	127 mm	53 mm	9.84 "	5 "	Adjustable Output DC Input Capable PFC Remote On/Off Remote Sense Universal Input	500 W	1	Enclosed	Chassis Mount	88 %	-10 °C	70 °C	3000 V	18.5 A		27 V	ITE (Commercial)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Enclosed AC DC Converters 1 Output 27V 85 ~ 264 VAC Input
