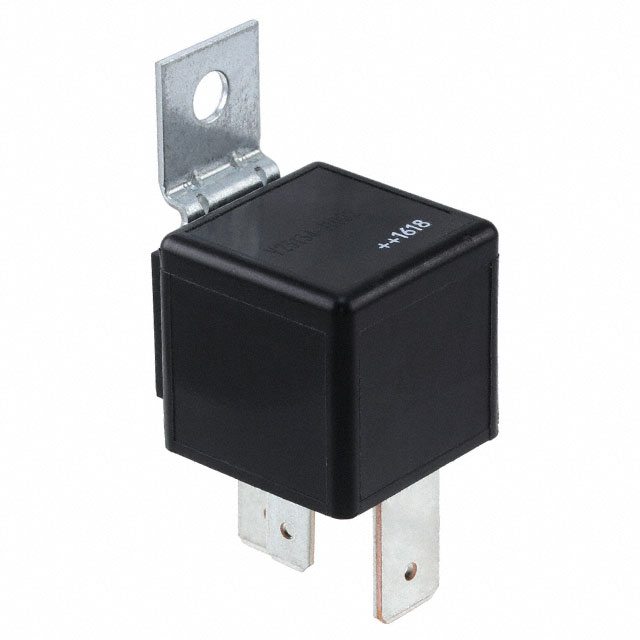

V23134J1052D642

Active

TE Connectivity Potter & Brumfield Relays

RELAY AUTOMOTIVE SPST-NO 70A 12V

Search across all available documentation for this part.

Active

TE Connectivity Potter & Brumfield Relays

RELAY AUTOMOTIVE SPST-NO 70A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	V23134J1052D642

Coil Power	1.6 W
Coil Resistance	90 Ohms
Coil Type	Non Latching
Coil Voltage	12 VDC
Contact Form	SPST-NO (1 Form A)
Contact Material	Silver Alloy
Contact Rating (Current)	70 A
Mounting Type	Chassis Mount
Must Operate Voltage	7.2 VDC
Must Release Voltage	1.6 VDC
Operate Time	7 ms
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Release Time	2 ms
Termination Style	Plug In, Multiple Sizes, Quick Connect

Part	Contact Rating (Current)	Termination Style	Coil Type	Coil Voltage	Coil Resistance	Operate Time	Coil Power	Mounting Type	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Release Time	Must Release Voltage	Must Operate Voltage	Contact Form	Switching Voltage	Coil Current	Features
TE Connectivity Potter & Brumfield Relays V23134J1052D642	70 A	Multiple Sizes Plug In Quick Connect	Non Latching	12 VDC	90 Ohms	7 ms	1.6 W	Chassis Mount	Silver Alloy	125 °C	-40 °C	2 ms	1.6 VDC	7.2 VDC	SPST-NO (1 Form A)
TE Connectivity Potter & Brumfield Relays V23134-A4052-X543	40 A	Plug In Quick Connect - 0.250" (6.3mm)	Non Latching	12 VDC	79.5 Ohms	7 ms	1.8 W	Chassis Mount	Silver Nickel (AgNi)	125 °C	-40 °C	2 ms	1.2 VDC	7.2 VDC	SPDT (1 Form C)	14 VDC	151 mA	Resistor

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RELAY AUTOMOTIVE SPST-NO 70A 12V

Technical documentation and resources
