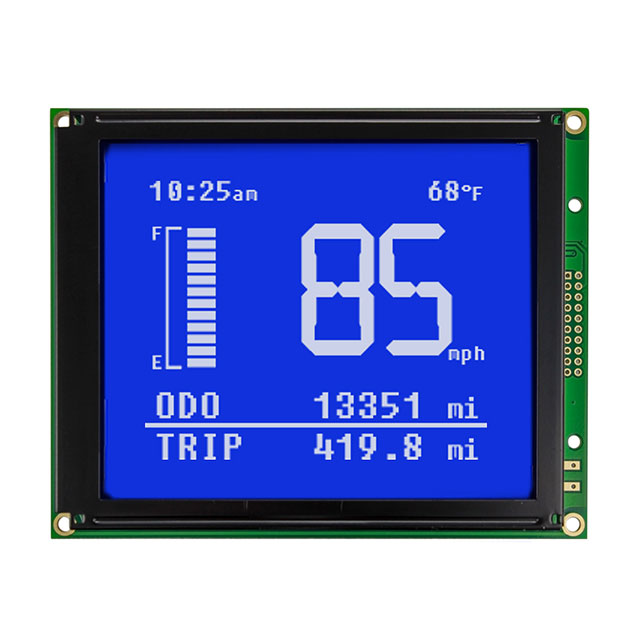

NHD-160128WG-BTMI-VZ#-1
ActiveNewhaven Display Intl
LCD MOD GRAPH 160X128 WH TRANSFL
Deep-Dive with AI
Search across all available documentation for this part.
NHD-160128WG-BTMI-VZ#-1
ActiveNewhaven Display Intl
LCD MOD GRAPH 160X128 WH TRANSFL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NHD-160128WG-BTMI-VZ#-1 |
|---|---|
| Background Color | Blue |
| Background Color | White |
| Backlight | LED - White |
| Controller Type | RA6963N1 |
| Display Mode | Transmissive |
| Display Type | STN - Super-Twisted Nematic |
| Dot Pixels [x] | 160 |
| Dot Pixels [y] | 128 |
| Dot Size [x] | 0.56 mm |
| Dot Size [y] | 0.56 mm |
| Graphics Color | White, Blue |
| Interface | Parallel, 8-Bit |
| Viewing Area [custom] | 101 mm |
| Viewing Area [custom] | 82 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 85.82 | |
| 5 | $ 80.67 | |||
| 10 | $ 75.52 | |||
| 50 | $ 71.23 | |||
| 100 | $ 67.80 | |||
Description
General part information
NHD-160128 Series
Graphic LCD Display Module Transmissive White (Blue - Inverted) STN - Super-Twisted Nematic Parallel, 8-Bit 160 x 128
