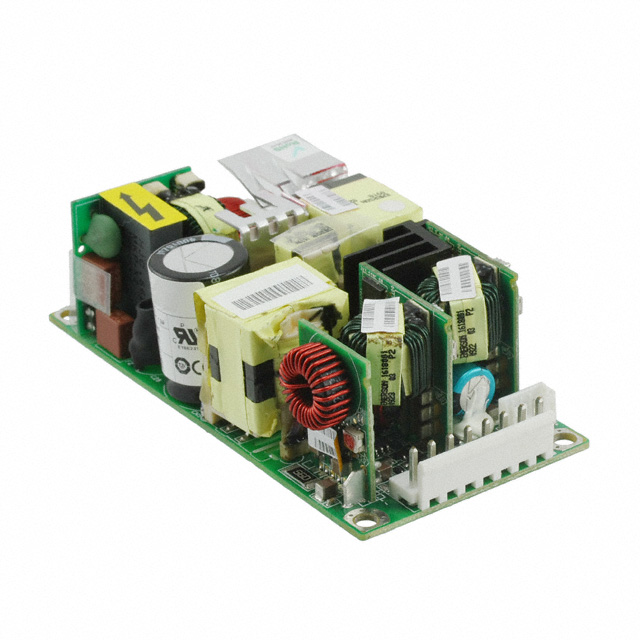

LPT103-M
ActiveARTESYN / Advanced Energy
AC/DC CONVERTER 5V +/-15V 80W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LPT103-M
ActiveARTESYN / Advanced Energy
AC/DC CONVERTER 5V +/-15V 80W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LPT103-M |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | CE, CB |
| Current - Output 1 | 18 A |
| Current - Output 2 | 7.2 A |
| Minimum Load Required | True |
| Mounting Type | Chassis Mount |
| Number of Outputs | 3 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Power (Watts) | 130 W, 80 W |
| Size / Dimension [x] | 4 in |
| Size / Dimension [x] | 102 mm |
| Size / Dimension [y] | 51 mm |
| Size / Dimension [y] | 2 in |
| Size / Dimension [z] | 32.6 mm |
| Size / Dimension [z] | 1.28 in |
| Type | Open Frame |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output 1 | 5 V |
| Voltage - Output 2 | 15 V |
| Voltage - Output 3 | -15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 99.46 | |
| 5 | $ 96.40 | |||
| 10 | $ 93.34 | |||
| 25 | $ 90.28 | |||
| 50 | $ 87.22 | |||
| 100 | $ 84.16 | |||
Description
General part information
LPT103 Series
Open Frame AC DC Converters 3 Output 5V 15V -15V 90 ~ 264 VAC Input
