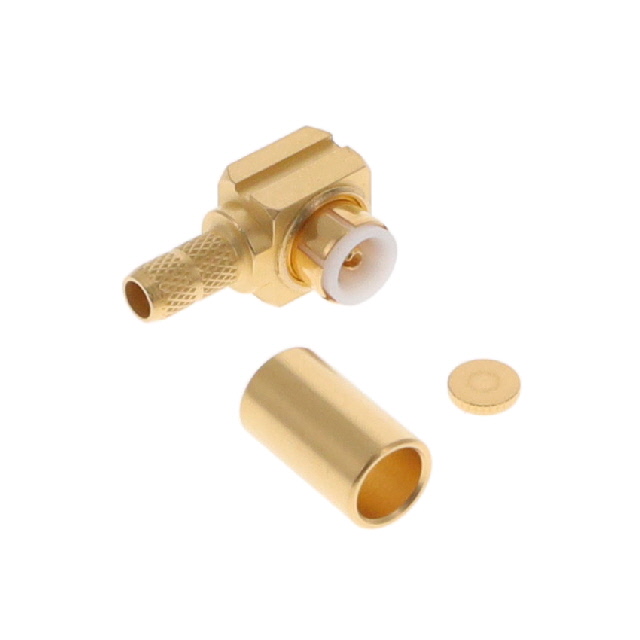

R223182000

Active

Radiall USA, Inc.

MMBX / RIGHT ANGLE PLUG CRIMP TY

Search across all available documentation for this part.

Active

Radiall USA, Inc.

MMBX / RIGHT ANGLE PLUG CRIMP TY

Technical Specifications

Parameters and characteristics for this part

Specification	R223182000

Body Finish	Gold
Body Material	Brass
Cable Group	316, RG-188
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	MMBX
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Crimp
Voltage Rating	250 VDC

Part	Frequency - Max [Max]	Impedance	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	Voltage Rating	Center Contact Plating	Cable Group	Body Finish	Mounting Type	Fastening Type	Center Contact Material	Connector Type	Number of Ports	Body Material	Housing Color	Connector Style	Shield Termination	Contact Termination
Radiall USA, Inc. R223182000	12.4 GHz	50 Ohms	155 °C	-55 °C	Polytetrafluoroethylene (PTFE)	250 VDC	Gold	316 RG-188	Gold	Free Hanging (In-Line) Right Angle	Snap-On	Beryllium Copper	Male Pin Plug	1	Brass	Gold	MMBX	Crimp	Crimp
Radiall USA, Inc. R223183000	12.4 GHz	50 Ohms	155 °C	-55 °C	Polytetrafluoroethylene (PTFE)	250 VDC	Gold	RG-316	Gold	Free Hanging (In-Line) Right Angle	Snap-On	Beryllium Copper	Male Pin Plug	1	Brass	Gold	MMBX	Crimp	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

MMBX Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Crimp
