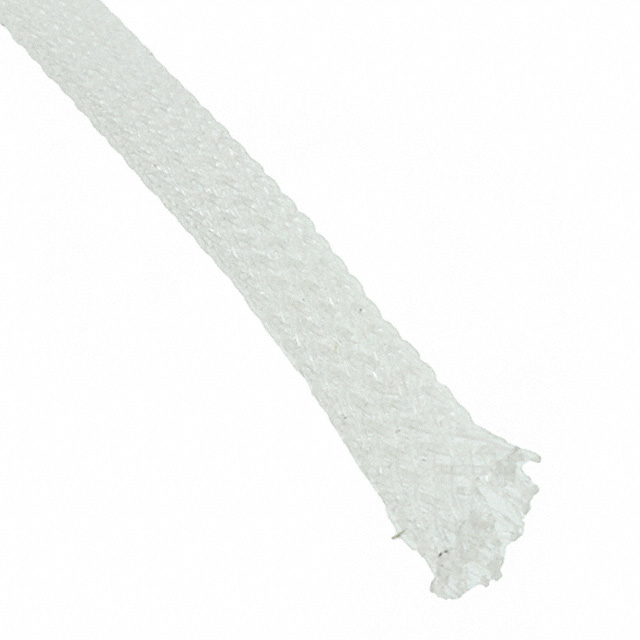

P1053/8 CL003

Active

ALPHA WIRE

PVC1053/8 CLEAR 250 FT ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

ALPHA WIRE

PVC1053/8 CLEAR 250 FT ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	P1053/8 CL003

Abrasion Protection	Abrasion Resistant
Color	Clear
Diameter - Inside [diameter]	9.52 mm
Diameter - Inside [diameter]	0.375 in
Diameter - Outside [diameter]	0.449 in
Diameter - Outside [diameter]	11.4 mm
Environment Protection	UV Resistant, Corrosion Resistant
Heat Protection	Heat Resistant
Length [x]	76.2 m
Length [x]	250 ft
Liquid Protection	Oil Resistant
Material	Poly-Vinyl Chloride (PVC)
Material Flammability Rating	UL 224 VW-1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Type	Solid Tubing
Type Attributes	Smooth
Wall Thickness [custom]	0.025 in
Wall Thickness [custom]	0.64 mm

Part	Type	Color	Abrasion Protection	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Length [x]	Length [x]	Material Flammability Rating	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Type Attributes	Wall Thickness [custom]	Wall Thickness [custom]	Heat Protection	Environment Protection	Material	Liquid Protection	Operating Temperature [Min]	Operating Temperature [Max]
ALPHA WIRE P1053/8 CL003	Solid Tubing	Clear	Abrasion Resistant	9.52 mm	0.375 in	76.2 m	250 ft	UL 224 VW-1	0.449 in	11.4 mm	Smooth	0.025 in	0.64 mm	Heat Resistant	Corrosion Resistant UV Resistant	Poly-Vinyl Chloride (PVC)	Oil Resistant	-20 C	105 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Clear Poly-Vinyl Chloride (PVC) Smooth Solid Tubing 0.375" (9.52mm) 250' (76.20m)
