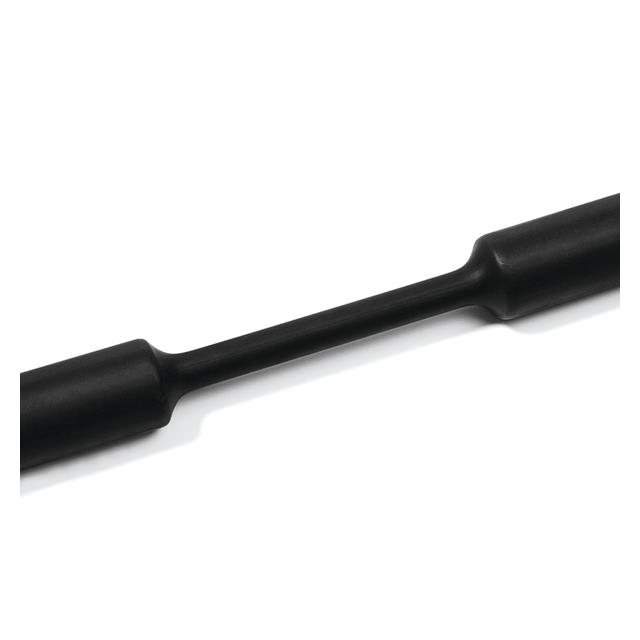

305-76200

Active

HELLERMANNTYTON

HEATSHRINK 3" X 82' BLACK

Search across all available documentation for this part.

Active

HELLERMANNTYTON

HEATSHRINK 3" X 82' BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	305-76200

Color	Black
Features	Self Extinguishing
Inner Diameter - Recovered [diameter]	38.1 mm
Inner Diameter - Recovered [diameter]	1.5 in
Inner Diameter - Supplied [diameter]	3 in
Inner Diameter - Supplied [diameter]	76.2 mm
Length	25 m
Length	82 ft
Material	Polyolefin (PO)
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.051 in
Recovered Wall Thickness	1.3 mm
Shrink Temperature	100 °C
Shrinkage Ratio	2 to 1
Type	Tubing, Flexible

Part	Type	Material	Length	Length	Recovered Wall Thickness	Recovered Wall Thickness	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Shrink Temperature	Operating Temperature [Max]	Operating Temperature [Min]	Features	Color	Shrinkage Ratio
HELLERMANNTYTON 305-76200	Tubing Flexible	Polyolefin (PO)	25 m	82 ft	0.051 in	1.3 mm	3 in	76.2 mm	38.1 mm	1.5 in	100 °C	135 °C	-55 °C	Self Extinguishing	Black	2 to 1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 1193.22

General part information

Heat Shrink Tubing, Flexible 3.000" (76.20mm) 2 to 1 Black 82.0' (25.0m)
