C3PES-1036M
ActiveCW Industries
IDC CABLE - CPC10S/AE10M/CCE10S
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsRibbon Cable Assembly Length Guide
C3PES-1036M
ActiveCW Industries
IDC CABLE - CPC10S/AE10M/CCE10S
Deep-Dive with AI
DocumentsRibbon Cable Assembly Length Guide
Technical Specifications
Parameters and characteristics for this part
| Specification | C3PES-1036M |
|---|---|
| Cable Termination | IDC |
| Color | Ribbon, Multiple |
| Contact Finish | Tin |
| Contact Finish Thickness | 2.54 µm |
| Contact Finish Thickness | 100 µin |
| Length [x] | 3 ft |
| Length [x] | 914.4 mm |
| Number of Positions | 10 |
| Pitch - Cable | 0.05 " |
| Pitch - Cable | 1.27 mm |
| Pitch - Connector | 0.05 in |
| Pitch - Connector | 1.27 mm |
| Shielding | Unshielded |
| Usage | Board In |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 10.11 | |
| 10 | $ 7.75 | |||
| 25 | $ 7.00 | |||
| 50 | $ 6.50 | |||
| 100 | $ 6.03 | |||
| 250 | $ 5.49 | |||
| 500 | $ 5.12 | |||
| 1000 | $ 4.79 | |||
Description
General part information
C3PES-1 Series

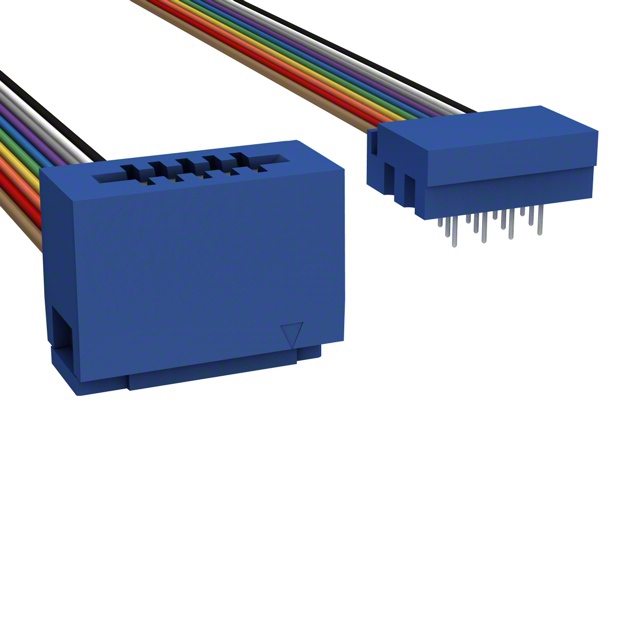

10 Position Cable Assembly Rectangular Card Edge to PCB 3.00' (914.40mm)
