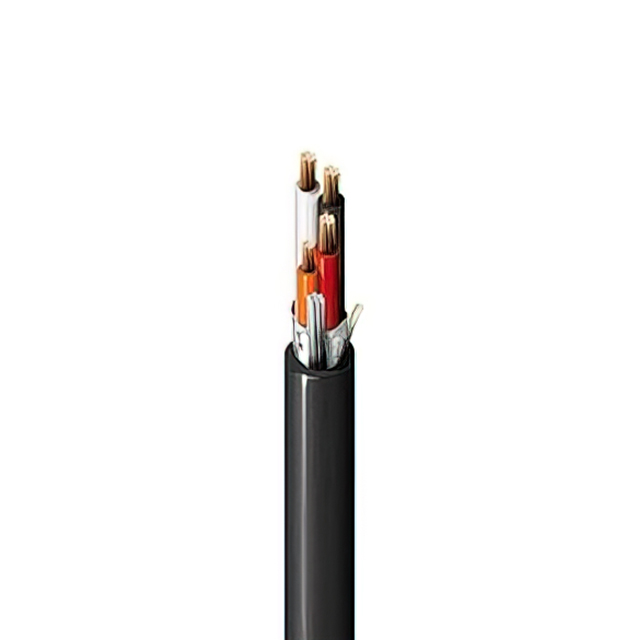

1528A 0107500

Active

Belden Inc.

MULTI-PAIR 7COND 16/22AWG

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 7COND 16/22AWG

Technical Specifications

Parameters and characteristics for this part

Specification	1528A 0107500

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Conductor Strand [custom]	7
Conductor Strand [custom]	24 AWG
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	11.81 mm
Jacket (Insulation) Diameter [diameter]	0.465 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.346 mm
Jacket (Insulation) Thickness	0.053 in
Jacket Color	Black
Length [x]	7500 ft
Length [x]	2286 m
Number of Conductors	7
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 2464
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Instrumentation
Voltage	300 V
Wire Gauge	22 AWG, 16 AWG

Part	Usage	Length [x]	Length [x]	Features	Jacket (Insulation) Material	Number of Conductors	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Coverage	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Insulation	Shield Material	Wire Gauge	Shield Type	Jacket Color	Conductor Material	Voltage	Ratings	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Strand [custom]
Belden Inc. 1528A 0107500	Instrumentation	7500 ft	2286 m	Drain Wire Rip Cord	Poly-Vinyl Chloride (PVC)	7	11.81 mm	0.465 in	1.346 mm	0.053 in	100 %	-30 ░C	105 ░C	Poly-Vinyl Chloride (PVC)	Aluminum	16 AWG 22 AWG	Foil	Black	Copper Bare	300 V	UL Style 2464	Multi-Pair	7	30 AWG	7	24 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	7500	$ 3.13

General part information

7 (3.5 Pair) Conductor Multi-Pair Cable Black 16 AWG, 22 AWG Foil 7500' (2286.0m)
