0022124092

Active

Molex

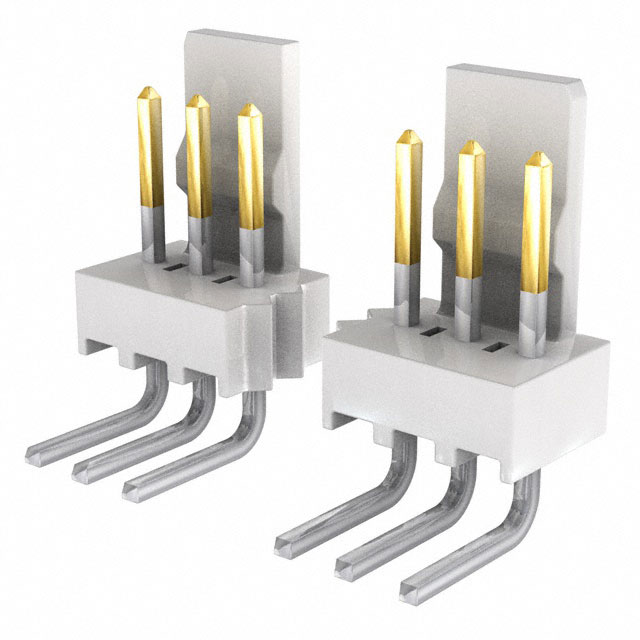

CONN HEADER R/A 9POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

0022124092

Active

Molex

CONN HEADER R/A 9POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0022124092

Applications	Medical, General Purpose, Automotive, Telecommunications
Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	0.51 µm
Contact Finish Thickness - Mating	20 µin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating	6.7 mm
Contact Length - Mating	0.264 in
Contact Length - Post [x]	0.15 in
Contact Length - Post [x]	3.81 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Friction Lock
Insulation Color	Natural
Insulation Height	5.8 mm
Insulation Height	0.228 in
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	9
Number of Positions Loaded	All
Number of Rows	1
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Shrouded - 1 Wall
Style	Board to Board, Cable
Termination	Solder

002212 Series

Part	Insulation Height	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Termination	Insulation Color	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Number of Positions	Contact Finish - Mating	Material Flammability Rating	Applications	Mounting Type	Number of Rows	Shrouding	Connector Type	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Contact Type	Fastening Type	Style	Contact Material	Contact Length - Post	Contact Length - Post
Molex 0022124022	5.8 mm	0.228 in	0.15 in	3.81 mm	Tin	2.54 µm	100 µin	Polyamide (PA66) Nylon 6/6	Solder	Natural	6.7 mm	0.264 in	0.51 µm	20 µin	Square	2	Gold	UL94 V-0	Automotive General Purpose Medical Telecommunications	Through Hole Right Angle	1	Shrouded - 1 Wall	Header	All	0.1 in	2.54 mm	Male Pin	Friction Lock	Board to Board Cable	Brass
Molex 0022124032	5.8 mm	0.228 in	0.15 in	3.81 mm	Tin	2.54 µm	100 µin	Polyamide (PA66) Nylon 6/6	Solder	Natural	6.7 mm	0.264 in	0.51 µm	20 µin	Square		Gold	UL94 V-0	Automotive General Purpose Medical Telecommunications	Through Hole Right Angle	1	Shrouded - 1 Wall	Header	All	0.1 in	2.54 mm	Male Pin	Friction Lock	Board to Board Cable	Brass
Molex 0022124092	5.8 mm	0.228 in	0.15 in	3.81 mm	Tin	2.54 µm	100 µin	Polyamide (PA66) Nylon 6/6	Solder	Natural	6.7 mm	0.264 in	0.51 µm	20 µin	Square	9	Gold	UL94 V-0	Automotive General Purpose Medical Telecommunications	Through Hole Right Angle	1	Shrouded - 1 Wall	Header	All	0.1 in	2.54 mm	Male Pin	Friction Lock	Board to Board Cable	Brass
Molex 0022122071	3.3 mm	0.13 in			Tin	2.54 µm	100 µin	Nylon Polyamide (PA)	Solder	White	9.37 mm	0.369 "	0.51 µm	20 µin	Square	7	Gold	UL94 V-0	Automotive General Purpose Medical Telecommunications	Through Hole Right Angle	1	Unshrouded	Header	All	0.1 in	2.54 mm	Male Pin	Push-Pull	Board to Board Cable		3.15 mm	0.124 "
Molex 0022122174	6.35 mm	0.25 in	0.141 "	3.58 mm	Tin	2.54 µm	100 µin	Nylon Polyamide (PA)	Solder	White	6.7 mm	0.264 in	0.51 µm	20 µin	Square		Gold	UL94 V-0	Automotive General Purpose Medical Telecommunications	Through Hole Right Angle	1	Shrouded - 1 Wall	Header	All	0.1 in	2.54 mm	Male Pin	Friction Lock	Board to Board Cable	Brass
Molex 0022122186	6.35 mm	0.25 in	0.141 "	3.58 mm	Tin	2.54 µm	100 µin	Nylon Polyamide (PA)	Solder	White	6.7 mm	0.264 in	0.76 Ám	30 Áin	Square	18	Gold	UL94 V-0	Automotive General Purpose Medical Telecommunications	Through Hole Right Angle	1	Shrouded - 1 Wall	Header	All	0.1 in	2.54 mm	Male Pin	Friction Lock	Board to Board Cable	Brass
Molex 0022121082			0.134 in	3.4 mm				Polyamide (PA66) Nylon 6/6	Solder	Natural	7.49 mm	0.295 in	0.35 µm	13.8 µin	Square	8	Gold	UL94 V-0		Through Hole Right Angle	1	Shrouded - 1 Wall	Header	All	0.098 in	2.5 mm	Male Pin	Friction Lock	Board to Cable/Wire
Molex 0022122284	6.35 mm	0.25 in	0.141 "	3.58 mm	Tin	2.54 µm	100 µin	Nylon Polyamide (PA)	Solder	White	6.7 mm	0.264 in	0.51 µm	20 µin	Square	28	Gold	UL94 V-0	Automotive General Purpose Medical Telecommunications	Through Hole Right Angle	1	Shrouded - 1 Wall	Header	All	0.1 in	2.54 mm	Male Pin	Friction Lock	Board to Board Cable	Brass
Molex 0022122066	6.35 mm	0.25 in	0.141 "	3.58 mm	Tin	2.54 µm	100 µin	Nylon Polyamide (PA)	Solder	White	6.7 mm	0.264 in	0.76 Ám	30 Áin	Square	6	Gold	UL94 V-0	Automotive General Purpose Medical Telecommunications	Through Hole Right Angle	1	Shrouded - 1 Wall	Header	All	0.1 in	2.54 mm	Male Pin	Friction Lock	Board to Board Cable	Brass
Molex 0022122124	6.35 mm	0.25 in	0.141 "	3.58 mm	Tin	2.54 µm	100 µin	Nylon Polyamide (PA)	Solder	White	6.7 mm	0.264 in	0.51 µm	20 µin	Square	12	Gold	UL94 V-0	Automotive General Purpose Medical Telecommunications	Through Hole Right Angle	1	Shrouded - 1 Wall	Header	All	0.1 in	2.54 mm	Male Pin	Friction Lock	Board to Board Cable	Brass

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.44
		10	$ 2.08
		100	$ 1.72
		1000	$ 1.36
		5000	$ 1.20

Description

General part information

002212 Series

Connector Header Through Hole, Right Angle 9 position 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available
