CLS-RR11A12250Y

Obsolete

Lumex Opto/Components Inc.

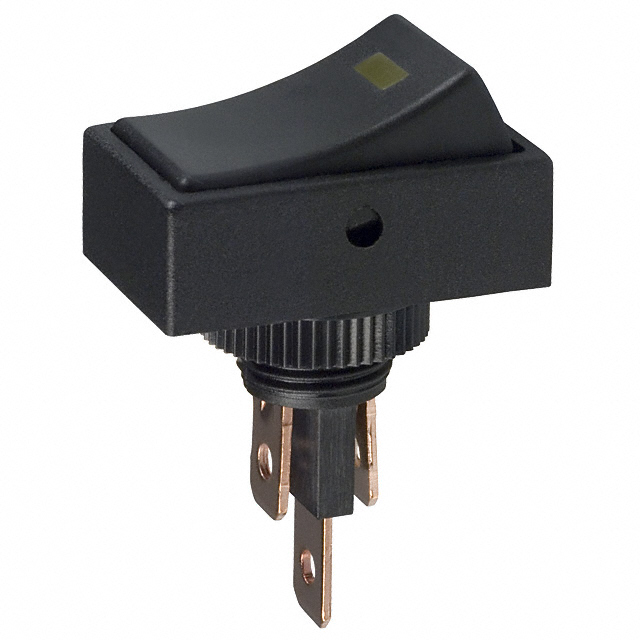

SWITCH ROCKER SPST 25A 12V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CLS-RR11A12250Y

Obsolete

Lumex Opto/Components Inc.

SWITCH ROCKER SPST 25A 12V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CLS-RR11A12250Y

Actuator Marking	No Marking
Actuator Type	Concave (Curved) - Illuminated
Circuit	SPST
Color - Actuator/Cap	Black
Current Rating (Amps)	25 A
Illumination Type, Color	LED, Yellow
Mounting Type	Panel Mount, Threaded Body with Nut
Panel Cutout Dimensions [diameter]	12 mm
Switch Function	On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - DC	12 V

CLS-RR11 Series

Part	Current Rating (Amps)	Actuator Marking	Color - Actuator/Cap	Termination Style	Actuator Type	Circuit	Switch Function	Illumination Type, Color	Voltage Rating - DC	Mounting Type	Panel Cutout Dimensions [diameter]	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Voltage Rating - AC
Lumex Opto/Components Inc. CLS-RR11A12250Y	25 A	No Marking	Black	Quick Connect - 0.250" (6.3mm)	Concave (Curved) - Illuminated	SPST	On-Off	LED Yellow	12 V	Panel Mount Threaded Body with Nut	12 mm
Lumex Opto/Components Inc. CLS-RR11A12252Y	20 A	No Marking	Black	Quick Connect - 0.250" (6.3mm)	Concave (Standard V) - Illuminated	SPST	On-Off	LED Yellow	12 V	Panel Mount Snap-In		28.7 mm	11.6 mm
Lumex Opto/Components Inc. CLS-RR11A12252R	20 A	No Marking	Black	Quick Connect - 0.250" (6.3mm)	Concave (Standard V) - Illuminated	SPST	On-Off	LED Red	12 V	Panel Mount Snap-In		28.7 mm	11.6 mm
Lumex Opto/Components Inc. CLS-RR11A12252B	20 A	No Marking	Black	Quick Connect - 0.250" (6.3mm)	Concave (Standard V) - Illuminated	SPST	On-Off	Blue LED	12 V	Panel Mount Snap-In		28.7 mm	11.6 mm
Lumex Opto/Components Inc. CLS-RR11A120250G	16 A	No Marking	Black	Quick Connect - 0.250" (6.3mm)	Concave (Curved) - Illuminated	SPST	On-Off	Green LED		Panel Mount Snap-In		27.8 mm	13.8 mm	125 V
Lumex Opto/Components Inc. CLS-RR11A120250R	16 A	No Marking	Black	Quick Connect - 0.250" (6.3mm)	Concave (Curved) - Illuminated	SPST	On-Off	LED Red		Panel Mount Snap-In		27.8 mm	13.8 mm	125 V
Lumex Opto/Components Inc. CLS-RR11A125500R	10 A	No Marking	Black	Quick Connect - 0.187" (4.7mm)	Concave (Curved) - Illuminated	SPST	On-Off	LED Red		Panel Mount Snap-In				125 V
Lumex Opto/Components Inc. CLS-RR11A125500Y	10 A	No Marking	Black	Quick Connect - 0.187" (4.7mm)	Concave (Curved) - Illuminated	SPST	On-Off	LED Yellow		Panel Mount Snap-In				125 V
Lumex Opto/Components Inc. CLS-RR11A12250B	25 A	No Marking	Black	Quick Connect - 0.250" (6.3mm)	Concave (Curved) - Illuminated	SPST	On-Off	Blue LED	12 V	Panel Mount Threaded Body with Nut	12 mm
Lumex Opto/Components Inc. CLS-RR11A120250Y	16 A	No Marking	Black	Quick Connect - 0.250" (6.3mm)	Concave (Curved) - Illuminated	SPST	On-Off	LED Yellow		Panel Mount Snap-In		27.8 mm	13.8 mm	125 V
