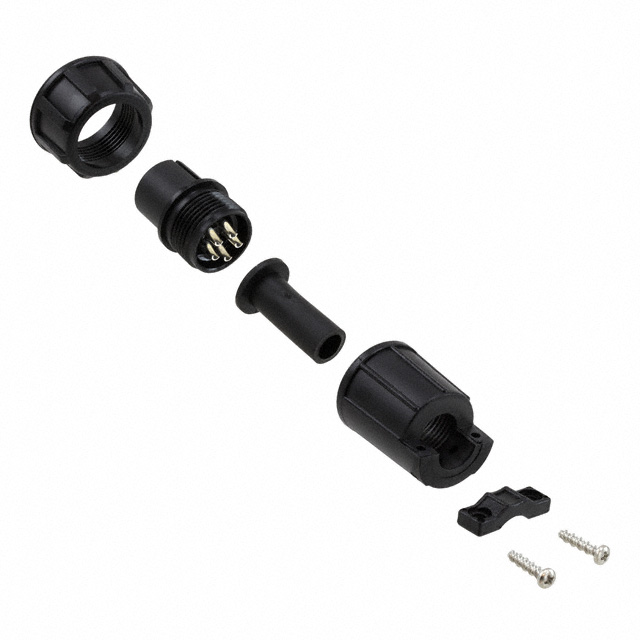

CXS3106A14S5P

Active

Conxall/Switchcraft

CONN PLUG MALE 5P SILV SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CXS3106A14S5P

Active

Conxall/Switchcraft

CONN PLUG MALE 5P SILV SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CXS3106A14S5P

Applications	Lighting
Backshell Material, Plating	Polyamide (PA), Nylon
Color	Black
Connector Type	Plug, Male Pins
Contact Finish - Mating	Silver
Contact Material	Brass
Features	Cable Clamp, Coupling Nut, Backshell
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Size - Insert	14S-5
Shielding	Unshielded
Voltage Rating	500 V

CXS3106A Series

Part	Shielding	Contact Material	Connector Type	Primary Material	Shell Size - Insert	Operating Temperature [Max]	Operating Temperature [Min]	Color	Mounting Type	Backshell Material, Plating	Applications	Contact Finish - Mating	Number of Positions	Features	Voltage Rating	Orientation	Ingress Protection
Conxall/Switchcraft CXS3106A2812P	Unshielded	Brass	Male Pins Plug	Plastic	28-12	125 °C	-40 °C	Black	Free Hanging (In-Line)	Nylon Polyamide (PA)	Lighting	Silver	26	Backshell Cable Clamp Coupling Nut	500 V	Keyed
Conxall/Switchcraft CXS3106A14S5P	Unshielded	Brass	Male Pins Plug	Plastic	14S-5	125 °C	-40 °C	Black	Free Hanging (In-Line)	Nylon Polyamide (PA)	Lighting	Silver		Backshell Cable Clamp Coupling Nut	500 V	Keyed
Conxall/Switchcraft CXS3106A14S-2S-300	Unshielded	Brass	Female Sockets Plug	Plastic	14S-2	125 °C	-40 °C	Black	Free Hanging (In-Line)	Nylon Polyamide (PA)	Lighting	Silver	4	Backshell Cable Clamp Coupling Nut	500 V	Keyed	Weathertight
Conxall/Switchcraft CXS3106A1610P	Unshielded	Brass	Male Pins Plug	Plastic	16-10	125 °C	-40 °C	Black	Free Hanging (In-Line)	Nylon Polyamide (PA)	Lighting	Silver		Backshell Cable Clamp Coupling Nut	500 V	Keyed
Conxall/Switchcraft CXS3106A2214P	Unshielded	Brass	Male Pins Plug	Plastic	22-14	125 °C	-40 °C	Black	Free Hanging (In-Line)	Nylon Polyamide (PA)	Lighting	Silver	19	Backshell Cable Clamp Coupling Nut	500 V	Keyed
Conxall/Switchcraft CXS3106A242S	Unshielded	Brass	Female Sockets Plug	Plastic	24-2	125 °C	-40 °C	Black	Free Hanging (In-Line)	Nylon Polyamide (PA)	Lighting	Silver	7	Backshell Cable Clamp Coupling Nut	500 V	Keyed
Conxall/Switchcraft CXS3106A10SL3S	Unshielded	Brass	Female Sockets Plug	Plastic	10SL-3	125 °C	-40 °C	Black	Free Hanging (In-Line)	Nylon Polyamide (PA)	Lighting	Silver		Backshell Cable Clamp Coupling Nut	500 V	Keyed
Conxall/Switchcraft CXS3106A282S	Unshielded	Brass	Female Sockets Plug	Plastic	28-2	125 °C	-40 °C	Black	Free Hanging (In-Line)	Nylon Polyamide (PA)	Lighting	Silver	14	Backshell Cable Clamp Coupling Nut	500 V	Keyed
Conxall/Switchcraft CXS3106A16S8S	Unshielded	Brass	Female Sockets Plug	Plastic	16S-8	125 °C	-40 °C	Black	Free Hanging (In-Line)	Nylon Polyamide (PA)	Lighting	Silver		Backshell Cable Clamp Coupling Nut	500 V	Keyed
Conxall/Switchcraft CXS3106A12S3S	Unshielded	Brass	Female Sockets Plug	Plastic	12S-3	125 °C	-40 °C	Black	Free Hanging (In-Line)	Nylon Polyamide (PA)	Lighting	Silver	2	Backshell Cable Clamp Coupling Nut	500 V	Keyed

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 16.08

Description

General part information

CXS3106A Series

5 Position Circular Connector Plug, Male Pins Solder Cup
