R191511000

Active

Radiall USA, Inc.

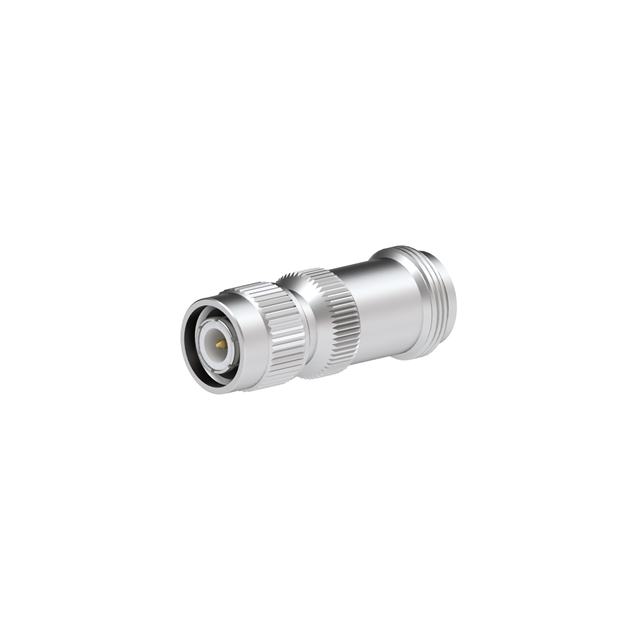

N FEMALE - TNC MALE STRAIGHT ADA

Search across all available documentation for this part.

Active

Radiall USA, Inc.

N FEMALE - TNC MALE STRAIGHT ADA

Technical Specifications

Parameters and characteristics for this part

Specification	R191511000

Adapter Series	N to TNC
Adapter Type	Plug to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	N Jack, Female Socket
Convert To (Adapter End)	TNC Plug, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Style	Straight

Part	Center Contact Plating	Convert From (Adapter End)	Adapter Type	Mating Cycles	Center Contact Material	Body Finish	Dielectric Material	Style	Impedance	Adapter Series	Conversion Type	Body Material	Mounting Type	Frequency - Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Convert To (Adapter End)	Mounting Feature	Center Gender
Radiall USA, Inc. R191511000	Gold	Female Socket N Jack	Plug to Jack	500	Beryllium Copper	Nickel	Polytetrafluoroethylene (PTFE)	Straight	50 Ohms	N to TNC	Between Series	Brass	Free Hanging (In-Line)	11 GHz	155 °C	-55 °C	Male Pin TNC Plug
Radiall USA, Inc. R191514000	Gold	Female Socket N Jack	Jack to Jack	500	Beryllium Copper	Nickel	Polytetrafluoroethylene (PTFE)	Straight	50 Ohms	N to TNC	Between Series	Brass		11 GHz	165 °C	-65 ░C	Female Socket TNC Jack	Flange	Female to Female

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector N Jack, Female Socket To TNC Plug, Male Pin 50 Ohms
