JBXED0G03FCSDSR

Active

Souriau-Sunbank by Eaton

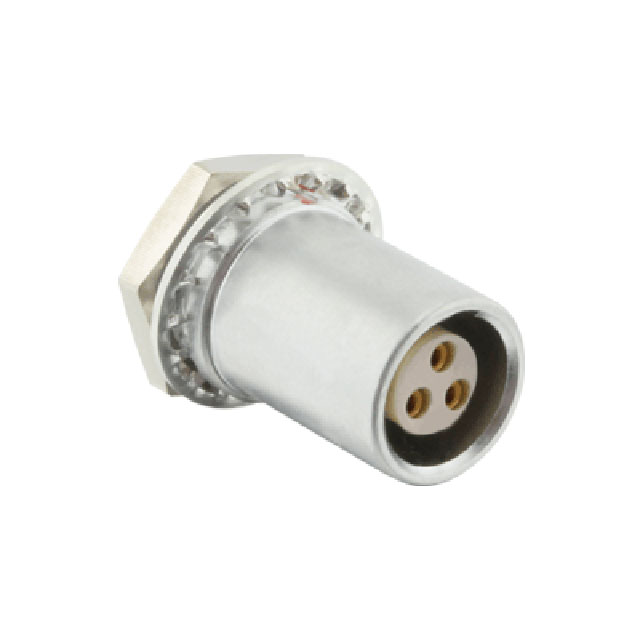

CONN RCPT FMALE 3POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

JBXED0G03FCSDSR

Active

Souriau-Sunbank by Eaton

CONN RCPT FMALE 3POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	JBXED0G03FCSDSR

Applications	Instrumentation, Medical, Telecommunications, Industrial
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	0.5 µm
Contact Finish Thickness - Mating	19.7 µin
Current Rating (Amps)	8 A
Fastening Type	Push-Pull
Ingress Protection	IP40
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	G
Primary Material	Metal
Shell Finish	Chrome over Nickel
Shell Material	Brass
Shell Size - Insert	0
Shielding	Shielded
Termination	Crimp
Voltage Rating	600 V

JBXED0G Series

Part	Fastening Type	Contact Finish - Mating	Shielding	Primary Material	Insert Material	Termination	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Color	Shell Finish	Current Rating (Amps)	Connector Type	Mounting Feature	Ingress Protection	Orientation	Shell Material	Material Flammability Rating	Voltage Rating	Mounting Type	Number of Positions
Souriau-Sunbank by Eaton JBXED0G03FCSDSR	Push-Pull	Gold	Shielded	Metal	Polyetheretherketone (PEEK)	Crimp	Industrial Instrumentation Medical Telecommunications	125 °C	-40 °C	0.5 µm	19.7 µin	Silver	Chrome over Nickel	8 A	Receptacle Female Sockets	Bulkhead - Rear Side Nut	IP40	G	Brass	UL94 V-0	600 V
Souriau-Sunbank by Eaton JBXED0G03FQSDSR	Push-Pull	Gold	Shielded	Metal	Polyetheretherketone (PEEK)	Solder	Industrial Instrumentation Medical Telecommunications	125 °C	-40 °C	0.5 µm	19.7 µin	Silver	Chrome over Nickel	8 A	Receptacle Female Sockets	Bulkhead - Rear Side Nut	IP40	G	Brass	UL94 V-0	600 V	Panel Mount Right Angle Through Hole
Souriau-Sunbank by Eaton JBXED0G02FQSDSR	Push-Pull	Gold	Shielded	Metal	Polyetheretherketone (PEEK)	Solder	Industrial Instrumentation Medical Telecommunications	125 °C	-40 °C	0.5 µm	19.7 µin	Silver	Chrome over Nickel	10 A	Receptacle Female Sockets	Bulkhead - Rear Side Nut	IP40	G	Brass	UL94 V-0	660 V	Panel Mount Right Angle Through Hole	2
Souriau-Sunbank by Eaton JBXED0G04FQSDSR	Push-Pull	Gold	Shielded	Metal	Polyetheretherketone (PEEK)	Solder	Industrial Instrumentation Medical Telecommunications	125 °C	-40 °C	0.5 µm	19.7 µin	Silver	Chrome over Nickel	7 A	Receptacle Female Sockets	Bulkhead - Rear Side Nut	IP40	G	Brass	UL94 V-0	660 V	Panel Mount Right Angle Through Hole	4

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 18.52

Description

General part information

JBXED0G Series

3 Position Circular Connector Receptacle, Female Sockets Crimp
