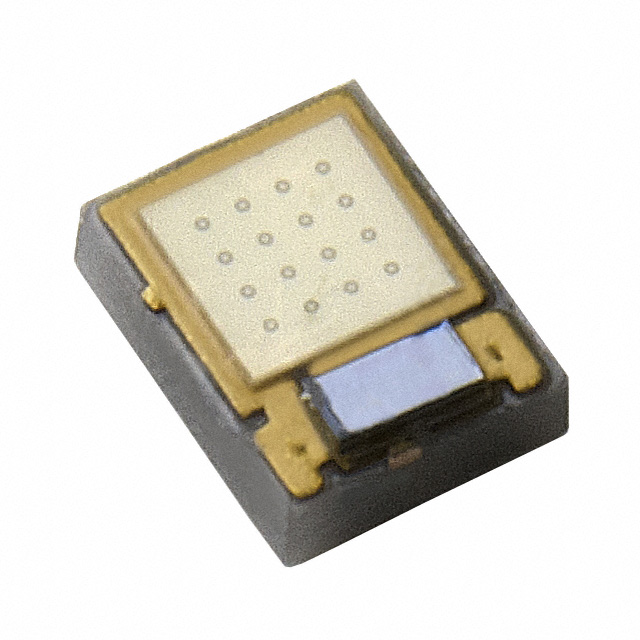

LHUV-0415-0550

Unknown

Lumileds

EMITTER UV 420NM 1A WFDFN

Search across all available documentation for this part.

Unknown

Lumileds

EMITTER UV 420NM 1A WFDFN

Technical Specifications

Parameters and characteristics for this part

Specification	LHUV-0415-0550

Current - DC Forward (If) (Max)	1 A
Mounting Type	Surface Mount
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-40 °C
Orientation	Top View
Package / Case	2-SMD, No Lead
Radiant Intensity (Ie) Min @ If [Min]	575 mW/sr
Type	Ultraviolet (UV)
Viewing Angle	125 °
Voltage - Forward (Vf) (Typ)	3 V
Wavelength [Max]	420 nm
Wavelength [Min]	415 nm

Part	Operating Temperature [Max]	Operating Temperature [Min]	Type	Wavelength [Max]	Wavelength [Min]	Current - DC Forward (If) (Max)	Voltage - Forward (Vf) (Typ)	Mounting Type	Radiant Intensity (Ie) Min @ If [Min]	Orientation	Viewing Angle	Package / Case	Radiant Intensity (Ie) Min @ If
Lumileds LHUV-0415-0550	135 °C	-40 °C	Ultraviolet (UV)	420 nm	415 nm	1 A	3 V	Surface Mount	575 mW/sr	Top View	125 °	2-SMD No Lead
Lumileds LHUV-0415-0600	135 °C	-40 °C	Ultraviolet (UV)	420 nm	415 nm	1 A	3 V	Surface Mount		Top View	125 °	2-SMD No Lead	625 mW/sr

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Ultraviolet (UV) Emitter 415nm ~ 420nm 3V 1A 575mW/sr @ 500mA 125° 2-SMD, No Lead
