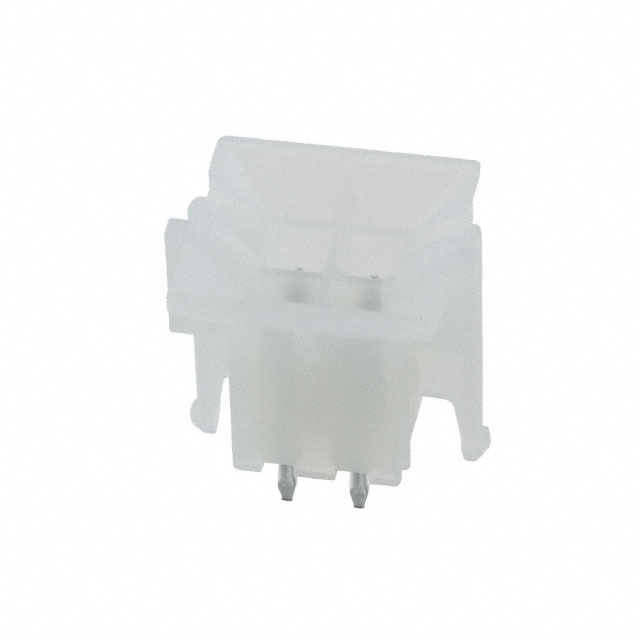

0015246042

Active

Molex

CONN HEADER VERT 4POS 4.2MM

Deep-Dive with AI

Search across all available documentation for this part.

0015246042

Active

Molex

CONN HEADER VERT 4POS 4.2MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0015246042

Applications	Industrial, Medical, General Purpose, Telecommunications
Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Post	3.5 mm
Contact Length - Post	0.138 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	Blind Mating, Board Lock
Insulation Color	Natural
Insulation Height	14.1 mm
Insulation Height	0.555 in
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	2
Pitch - Mating	4.2 mm
Pitch - Mating	0.165 in
Row Spacing - Mating	4.2 mm
Row Spacing - Mating	0.165 in
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder

001524 Series

Part	Material Flammability Rating	Features	Termination	Insulation Color	Number of Rows	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Applications	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Mounting Type	Number of Positions	Contact Finish - Post	Number of Positions Loaded	Row Spacing - Mating	Row Spacing - Mating	Contact Type	Shrouding	Contact Length - Post	Contact Length - Post	Insulation Material	Insulation Height	Insulation Height	Fastening Type	Pitch - Mating	Pitch - Mating	Connector Type	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Contact Finish - Mating	Insulation Height [z]	Insulation Height [z]	Contact Length - Mating [x]	Contact Length - Mating [x]
Molex 0015249104	UL94 V-0	Blind Mating Board Lock	Solder	Natural	2	Board to Board Cable	2.54 çm	100 çin	General Purpose Industrial Medical Telecommunications	2.54 µm	100 µin	Brass	Through Hole Right Angle	10	Tin	All	4.2 mm	0.165 in	Male Pin	Shrouded - 4 Wall	0.13 in	3.3 mm	Polyamide (PA66) Nylon 6/6	0.591 in	15 mm	Latch Holder	4.2 mm	0.165 in	Header	Square
Molex 0015246042	UL94 V-0	Blind Mating Board Lock	Solder	Natural	2	Board to Board Cable	2.54 çm	100 çin	General Purpose Industrial Medical Telecommunications	2.54 µm	100 µin	Brass	Through Hole	4	Tin	All	4.2 mm	0.165 in	Male Pin	Shrouded - 4 Wall	0.138 in	3.5 mm	Polyamide (PA66) Nylon 6/6	0.555 in	14.1 mm	Latch Holder	4.2 mm	0.165 in	Header	Square
Molex 0015247244	UL94 V-2	Blind Mating Board Lock	Solder	Natural	2	Board to Board Cable	2.54 çm	100 çin	General Purpose Industrial Medical Telecommunications	2.54 µm	100 µin	Phosphor Bronze	Through Hole	24	Tin	All	4.2 mm	0.165 in	Female Socket		0.138 in	3.5 mm	Polyamide (PA66) Nylon 6/6	0.446 in	11.33 mm	Push-Pull	4.2 mm	0.165 in	Receptacle	Square	-40 °C	105 ░C	600 V
Molex 0015247041	UL94 V-0	Blind Mating Board Lock	Solder	Natural	2	Board to Board Cable	2.54 çm	100 çin	General Purpose Industrial Medical Telecommunications	2.54 µm	100 µin	Brass	Through Hole	4	Tin	All	4.2 mm	0.165 in	Female Socket		0.138 in	3.5 mm	Polyamide (PA66) Nylon 6/6	0.446 in	11.33 mm	Push-Pull	4.2 mm	0.165 in	Receptacle	Square	-40 °C	105 ░C	600 V
Molex 0015247102	UL94 V-2	Blind Mating Board Lock	Solder	Natural	2	Board to Board Cable	0.76 Ám	30 Áin	General Purpose Industrial Medical Telecommunications	2.54 µm	100 µin	Brass	Through Hole	10	Tin	All	4.2 mm	0.165 in	Female Socket		0.138 in	3.5 mm	Polyamide (PA66) Nylon 6/6	0.446 in	11.33 mm	Push-Pull	4.2 mm	0.165 in	Receptacle	Square	-40 °C	105 ░C	600 V	Gold
Molex 0015247182	UL94 V-2	Blind Mating Board Lock	Solder	Natural	2	Board to Board Cable	0.76 Ám	30 Áin	General Purpose Industrial Medical Telecommunications	2.54 µm	100 µin	Brass	Through Hole	18	Tin	All	4.2 mm	0.165 in	Female Socket		0.138 in	3.5 mm	Polyamide (PA66) Nylon 6/6	0.446 in	11.33 mm	Push-Pull	4.2 mm	0.165 in	Receptacle	Square	-40 °C	105 ░C	600 V	Gold
Molex 0015244342	UL94 V-0	Board Guide	Solder	Black	1	Board to Cable/Wire	2.54 çm	100 çin		2.54 µm	100 µin	Phosphor Bronze	Through Hole	4	Tin-Lead	All			Male Pin	Shrouded - 4 Wall	0.083 in	2.11 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled			Friction Lock	5.08 mm	0.2 in	Header	Circular				Tin-Lead	0.404 in	10.26 mm	5.08 mm	0.2 in
Molex 0015246106		Blind Mating Board Lock	Solder	Natural	2	Board to Board Cable	2.54 çm	100 çin	General Purpose Industrial Medical Telecommunications	2.54 µm	100 µin	Brass	Through Hole	10	Tin	All	4.2 mm	0.165 in	Male Pin	Shrouded - 4 Wall	0.138 in	3.5 mm	Polyamide (PA66) Nylon 6/6	0.555 in	14.1 mm	Latch Holder	4.2 mm	0.165 in	Header	Square
Molex 0015246142	UL94 V-0	Blind Mating Board Lock	Solder	Natural	2	Board to Board Cable	2.54 çm	100 çin	General Purpose Industrial Medical Telecommunications	2.54 µm	100 µin	Brass	Through Hole	14	Tin	All	4.2 mm	0.165 in	Male Pin	Shrouded - 4 Wall	0.138 in	3.5 mm	Polyamide (PA66) Nylon 6/6	0.555 in	14.1 mm	Latch Holder	4.2 mm	0.165 in	Header	Square
Molex 0015246063	UL94 V-0	Blind Mating Board Lock	Solder	Natural	2	Board to Board Cable	0.76 Ám	30 Áin	General Purpose Industrial Medical Telecommunications	2.54 µm	100 µin	Brass	Through Hole Right Angle	6	Tin	All	4.2 mm	0.165 in	Male Pin	Shrouded - 4 Wall	0.13 in	3.3 mm	Polyamide (PA66) Nylon 6/6	0.591 in	15 mm	Latch Holder	4.2 mm	0.165 in	Header	Square				Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.02
		10	$ 0.84
		100	$ 0.70
		1520	$ 0.62

Description

General part information

001524 Series

Connector Header Through Hole 4 position 0.165" (4.20mm)
