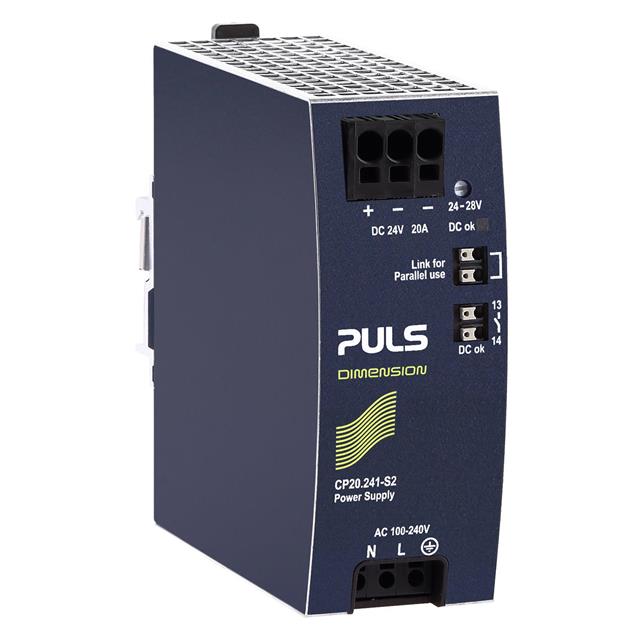

CP20.241-S2

Active

PULS, LP

AC/DC DIN RAIL SUPPLY 24V 480W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CP20.241-S2

Active

PULS, LP

AC/DC DIN RAIL SUPPLY 24V 480W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CP20.241-S2

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	85 VAC
Applications	Industrial, ITE (Commercial)
Approval Agency	IECEx, IEC, ATEX, UL, EAC
Current - Output (Max) [Max]	20 A
DC Voltage - Input (Max) [Max]	150 V
DC Voltage - Input (Min) [Min]	110 V
Efficiency	94.2 %
Features	PFC, Universal Input, Load Sharing, Adjustable Output, IP20
Input Type	AC or DC
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	480 W
Size / Dimension [x]	127 mm
Size / Dimension [x]	5 in
Size / Dimension [y]	48 mm
Size / Dimension [y]	1.89 in
Size / Dimension [z]	4.88 "
Size / Dimension [z]	124 mm
Standard Number	61010-2-201, Class I Div 2
Voltage - Isolation	500 V
Voltage - Output 1	24 V

CP20 Series

Part	Input Type	Operating Temperature [Min]	Operating Temperature [Max]	Standard Number	Voltage - Isolation	Power (Watts)	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Approval Agency	Applications	Number of Outputs	Efficiency	Voltage - Output 1	DC Voltage - Input (Max) [Max]	DC Voltage - Input (Min) [Min]	Features	Current - Output (Max) [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	DC Voltage - Input (Max) [custom]
PULS, LP CP20.241-S2	AC or DC	-25 °C	70 °C	61010-2-201 Class I Div 2	500 V	480 W	85 VAC	264 VAC	ATEX EAC IEC IECEx UL	Industrial ITE (Commercial)	1	94.2 %	24 V	150 V	110 V	Adjustable Output IP20 Load Sharing PFC Universal Input	20 A	4.88 "	48 mm	124 mm	127 mm	1.89 in	5 in
PULS, LP CP20.241	AC or DC	-25 °C	70 °C	61010-2-201 Class I Div 2		480 W	85 VAC	264 VAC	ATEX EAC IEC IECEx UL	Hazardous Locations ITE (Commercial)	1	95.6 %	24 V	150 V	110 V	Adjustable Output PFC Universal Input	20 A	4.88 "	48 mm	124 mm	127 mm	1.89 in	5 in
PULS, LP CP20.241-R2	AC or DC	-25 °C	70 °C	61010-2-201 Class I Div 2		480 W	85 VAC	264 VAC	ATEX EAC IEC IECEx UL	Hazardous Locations Industrial ITE (Commercial)	1	95.2 %	24 V		88 V	Adjustable Output PFC Universal Input	20 A	4.88 "	48 mm	124 mm	127 mm	1.89 in	5 in	180 V
PULS, LP CP20.241-V1	AC or DC	-25 °C	70 °C	61010-2-201 Class I Div 2		480 W	85 VAC	264 VAC	ATEX EAC IEC IECEx UL	Hazardous Locations Industrial ITE (Commercial)	1	95.6 %	24 V		88 V	Adjustable Output PFC Remote On/Off Universal Input	20 A	4.88 "	48 mm	124 mm	127 mm	1.89 in	5 in	180 V
PULS, LP CP20.241-R2-C1	AC or DC				500 V	480 W	85 VAC	264 VAC	CE cULus EAC	Industrial ITE (Commercial)	1	93.8 %	24 V	150 V	110 V	Adjustable Output IP20 Load Sharing PFC Universal Input	20 A	4.88 "	48 mm	124 mm	127 mm	1.89 in	5 in
PULS, LP CP20.241-S1	AC or DC	-25 °C	70 °C	61010-2-201 Class I Div 2		480 W	85 VAC	264 VAC	ATEX EAC IEC IECEx UL	Hazardous Locations Industrial ITE (Commercial)	1	95.6 %	24 V		88 V	Adjustable Output PFC Universal Input	20 A	4.88 "	48 mm	124 mm	127 mm	1.89 in	5 in	180 V
PULS, LP CP20.241-R1	AC or DC	-25 °C	70 °C	61010-2-201 Class I Div 2		480 W	85 VAC	264 VAC	ATEX EAC IEC IECEx UL	Hazardous Locations Industrial ITE (Commercial)	1	95.2 %	24 V		88 V	Adjustable Output PFC Universal Input	20 A	4.88 "	48 mm	124 mm	127 mm	1.89 in	5 in	180 V
PULS, LP CP20.241-C1	AC or DC	-25 °C	70 °C	61010-2-201 Class I Div 2	3000 V	480 W	85 VAC	264 VAC	ATEX EAC IEC IECEx UL	Hazardous Locations Industrial ITE (Commercial)	1	95.6 %	24 V		88 V	Adjustable Output PFC Universal Input	20 A	4.88 "	48 mm	124 mm	127 mm	1.89 in	5 in	180 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 486.00

Description

General part information

CP20 Series

AC/DC DIN RAIL SUPPLY 24V 480W
