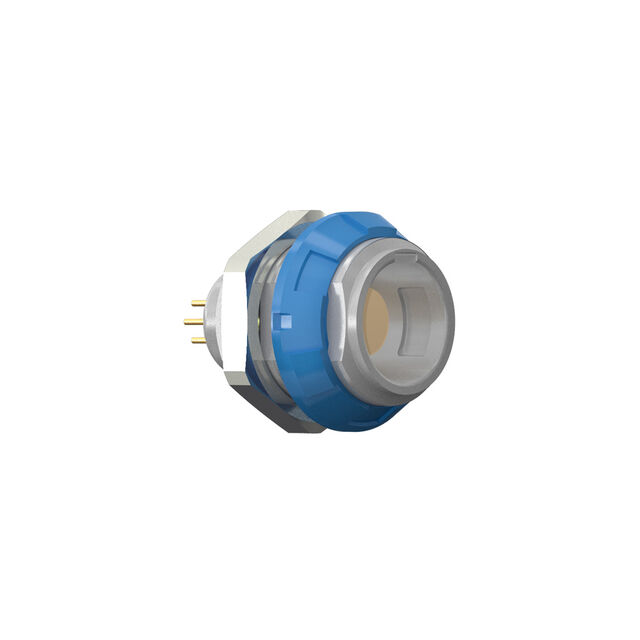

G51ME7-P06QF00-0060

Active

ODU

ODU MEDI-SNAP RECEPT, STY 5, SZ

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

G51ME7-P06QF00-0060

Active

ODU

ODU MEDI-SNAP RECEPT, STY 5, SZ

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	G51ME7-P06QF00-0060

Applications	Testing Equipment, Medical, Industrial, Measurement
Color	Gray, Blue
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	6 A
Fastening Type	Detent Lock, Push-Pull
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front or Rear Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Positions	6
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-50 °C
Orientation	E
Primary Material	Plastic
Shell Material	Polysulfone (PSU)
Shell Size - Insert	1
Shielding	Unshielded
Termination	Solder
Voltage Rating	36 VDC

G51ME7-P Series

Part	Contact Material	Ingress Protection	Shell Material	Contact Finish - Mating	Fastening Type	Insert Material	Material Flammability Rating	Voltage Rating	Current Rating (Amps)	Connector Type	Shell Size - Insert	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Color	Mounting Feature	Applications	Orientation	Termination	Mounting Type	Number of Positions
ODU G51ME7-P05LJG0-0070	Brass	IP50	Polysulfone (PSU)	Gold	Detent Lock Push-Pull	Polyetheretherketone (PEEK)	UL94 V-0	35 V	7.5 A	Receptacle Female Sockets	1	Plastic	-50 °C	120 °C	Unshielded	Gray	Bulkhead - Front or Rear Side Nut	Industrial Measurement Medical Testing Equipment	E
ODU G51ME7-P05QJ00-A060	Brass	IP50	Polysulfone (PSU)	Gold	Detent Lock Push-Pull	Polyetheretherketone (PEEK)	UL94 V-0	35 V	7.5 A	Receptacle Female Sockets	1	Plastic	-50 °C	120 °C	Unshielded	Blue Gray	Bulkhead - Front or Rear Side Nut	Industrial Measurement Medical Testing Equipment	E	Solder	Panel Mount Through Hole
ODU G51ME7-P04QJ00-A060	Brass	IP50	Polysulfone (PSU)	Gold	Detent Lock Push-Pull	Polyetheretherketone (PEEK)	UL94 V-0	48 VDC	7.5 A	Receptacle Female Sockets	1	Plastic	-50 °C	120 °C	Unshielded	Blue Gray	Bulkhead - Front or Rear Side Nut	Industrial Measurement Medical Testing Equipment	E	Solder	Panel Mount Through Hole	4
ODU G51ME7-P06QF00-0060	Brass	IP50	Polysulfone (PSU)	Gold	Detent Lock Push-Pull	Polyetheretherketone (PEEK)	UL94 V-0	36 VDC	6 A	Receptacle Female Sockets	1	Plastic	-50 °C	120 °C	Unshielded	Blue Gray	Bulkhead - Front or Rear Side Nut	Industrial Measurement Medical Testing Equipment	E	Solder	Panel Mount Through Hole	6
ODU G51ME7-P14LCC0-0070	Brass	IP50	Polysulfone (PSU)	Gold	Detent Lock Push-Pull	Polyetheretherketone (PEEK)	UL94 V-0	25 V	4 A	Receptacle Female Sockets	1	Plastic	-50 °C	120 °C	Unshielded	Gray	Bulkhead - Front or Rear Side Nut	Industrial Measurement Medical Testing Equipment	E			14
ODU G51ME7-P05QJ00-0070	Brass	IP50	Polysulfone (PSU)	Gold	Detent Lock Push-Pull	Polyetheretherketone (PEEK)	UL94 V-0	35 V	7.5 A	Receptacle Female Sockets	1	Plastic	-50 °C	120 °C	Unshielded	Gray	Bulkhead - Front or Rear Side Nut	Industrial Measurement Medical Testing Equipment	E	Solder	Panel Mount Through Hole
ODU G51ME7-P04LJG0-0080	Brass	IP50	Polysulfone (PSU)	Gold	Detent Lock Push-Pull	Polyetheretherketone (PEEK)	UL94 V-0	48 VDC	7.5 A	Receptacle Female Sockets	1	Plastic	-50 °C	120 °C	Unshielded		Bulkhead - Front or Rear Side Nut	Industrial Measurement Medical Testing Equipment	E			4
ODU G51ME7-P02QP00-0080	Brass	IP50	Polysulfone (PSU)	Gold	Detent Lock Push-Pull	Polyetheretherketone (PEEK)	UL94 V-0	48 VDC	12 A	Receptacle Female Sockets	1	Plastic	-50 °C	120 °C	Unshielded		Bulkhead - Front or Rear Side Nut	Industrial Measurement Medical Testing Equipment	E	Solder	Panel Mount Through Hole	2
ODU G51ME7-P07QF00-0070	Brass	IP50	Polysulfone (PSU)	Gold	Detent Lock Push-Pull	Polyetheretherketone (PEEK)	UL94 V-0	36 VDC	6 A	Receptacle Female Sockets	1	Plastic	-50 °C	120 °C	Unshielded	Gray	Bulkhead - Front or Rear Side Nut	Industrial Measurement Medical Testing Equipment	E	Solder	Panel Mount Through Hole	7
ODU G51ME7-P05QJ00-A050	Brass	IP50	Polysulfone (PSU)	Gold	Detent Lock Push-Pull	Polyetheretherketone (PEEK)	UL94 V-0	35 V	7.5 A	Receptacle Female Sockets	1	Plastic	-50 °C	120 °C	Unshielded	Gray Green	Bulkhead - Front or Rear Side Nut	Industrial Measurement Medical Testing Equipment	E	Solder	Panel Mount Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 21.95

Description

General part information

G51ME7-P Series

6 Position Circular Connector Receptacle, Female Sockets Solder
