8501XO11V02

Active

SQUARE D BY SCHNEIDER ELECTRIC

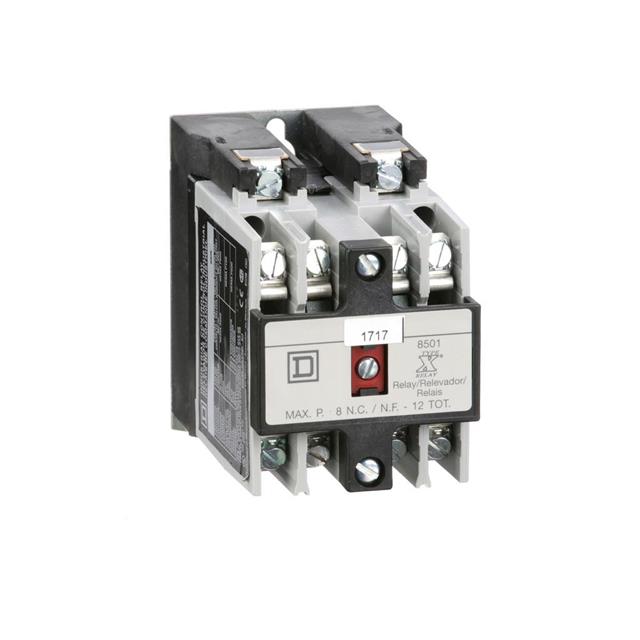

NEMA CONTROL RELAY, TYPE X, MACH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

8501XO11V02

Active

SQUARE D BY SCHNEIDER ELECTRIC

NEMA CONTROL RELAY, TYPE X, MACH

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8501XO11V02

Approval Agency	UL, CSA, CE
Coil Type	Non Latching
Coil Voltage	120 VAC
Contact Form	DPST-NO/NC
Contact Rating (Current)	10 A
Load - Max Switching	6000 VA
Mounting Type	Chassis Mount
Operate Time	15 ms
Operating Temperature [Max]	71 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	16 ms
Switching Voltage	600 VAC
Termination Style	Screw Terminal

8501XO Series

Part	Contact Rating (Current)	Operate Time	Load - Max Switching	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Coil Type	Coil Voltage	Release Time	Mounting Type	Approval Agency	Relay Type	Switching Voltage	Contact Form	Contact Form	Must Operate Voltage
SQUARE D BY SCHNEIDER ELECTRIC 8501XO11V02	10 A	15 ms	6000 VA	-40 °C	71 °C	Screw Terminal	Non Latching	120 VAC	16 ms	Chassis Mount	CE CSA UL	General Purpose	600 VAC	DPST-NO/NC
SQUARE D BY SCHNEIDER ELECTRIC 8501XO40XLV02	10 A	15 ms	6000 VA	-40 °C	71 °C	Screw Terminal	Latching Single Coil	120 VAC	13 ms	Chassis Mount	CSA UL	General Purpose	600 VAC	4PST-NO (4 Form A)
SQUARE D BY SCHNEIDER ELECTRIC 8501XO80V03	10 A	15 ms	6000 VA	-40 °C	71 °C	Screw Terminal	Non Latching	240 VAC	16 ms	Chassis Mount	CE CSA UL	General Purpose	600 VAC	8PST-NO	8 Form A
SQUARE D BY SCHNEIDER ELECTRIC 8501XO30V02	10 A	15 ms	6000 VA	-40 °C	71 °C	Screw Terminal	Non Latching	120 VAC	16 ms	Socketable	CSA UL	General Purpose	600 VAC	3PST-NO (3 Form A)		102 VAC
SQUARE D BY SCHNEIDER ELECTRIC 8501XO20V01	10 A	15 ms	6000 VA	-40 °C	71 °C	Screw Terminal	Non Latching	24 VAC	16 ms	Chassis Mount	CSA UL	General Purpose	600 VAC	DPST-NO (2 Form A)
SQUARE D BY SCHNEIDER ELECTRIC 8501XO20XLV02	10 A	15 ms	6000 VA	-40 °C	71 °C	Screw Terminal	Latching Single Coil	120 VAC	13 ms	Chassis Mount	CSA UL	General Purpose	600 VAC	DPST-NO (2 Form A)
SQUARE D BY SCHNEIDER ELECTRIC 8501XO20V03	10 A	15 ms	6000 VA	-40 °C	71 °C	Screw Terminal	Non Latching	240 VAC	16 ms	Chassis Mount	CSA UL	General Purpose	600 VAC	DPST-NO (2 Form A)		204 VAC
SQUARE D BY SCHNEIDER ELECTRIC 8501XO60XLV02	10 A	15 ms	6000 VA	-40 °C	71 °C	Screw Terminal	Latching Single Coil	120 VAC	13 ms	Chassis Mount	CSA UL	General Purpose	600 VAC	6PST-NO (6 Form A)
SQUARE D BY SCHNEIDER ELECTRIC 8501XO20XTD1V02	10 A	15 ms	6000 VA	-40 °C	71 °C	Screw Terminal	Non Latching	120 VAC	16 ms	Chassis Mount	CSA UL	General Purpose	600 VAC	DPST-NO (2 Form A)		102 VAC
SQUARE D BY SCHNEIDER ELECTRIC 8501XO20V04	10 A	15 ms	6000 VA	-40 °C	71 °C	Screw Terminal	Non Latching	277 VAC	16 ms	Socketable	CSA UL	General Purpose	600 VAC	DPST-NO (2 Form A)		235.45 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 155.48

Description

General part information

8501XO Series

General Purpose Relay DPST-NO/NC (1 Form A, 1 Form B) 120VAC Coil Chassis Mount
