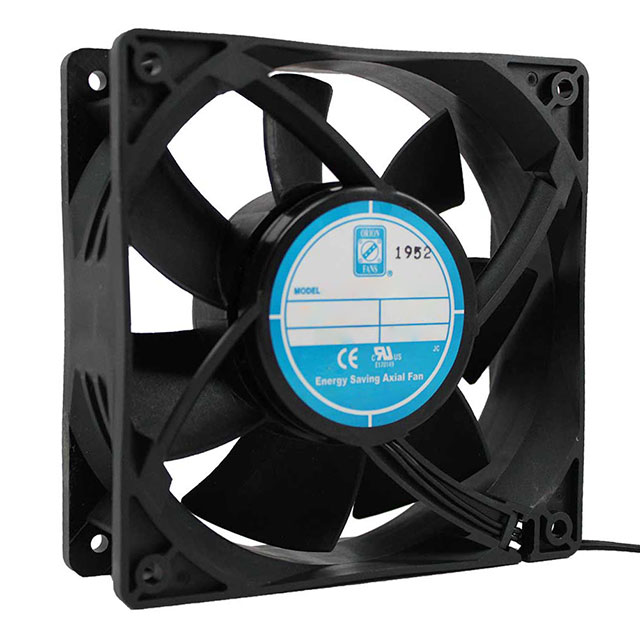

OA109EC-UR-1WBXC

Active

Orion Fans

EC FAN 120X38MM 85-265VAC 134CFM

Deep-Dive with AI

Search across all available documentation for this part.

OA109EC-UR-1WBXC

Active

Orion Fans

EC FAN 120X38MM 85-265VAC 134CFM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OA109EC-UR-1WBXC

Air Flow	3.79 m³/min
Air Flow	133.8 CFM
Approval Agency	TUV, CE, cURus, UR
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Dual Voltage, Electronic Commutation (EC)
Lifetime @ Temp.	70000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	47 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	6.5 W
RPM	3000 RPM
Size / Dimension [x]	120 mm
Size / Dimension [y]	120 mm
Static Pressure	0.42 in H2O
Static Pressure	104.6 Pa
Termination	2 Wire Leads
Voltage - Rated [Max]	220 VAC
Voltage - Rated [Min]	110 VAC
Voltage Range [Max]	256 VAC
Voltage Range [Min]	85 VAC
Weight	309.8 g
Weight	0.683 lb
Width [y]	38 mm

OA109EC Series

Part	Air Flow	Air Flow	Width [y]	Size / Dimension [y]	Size / Dimension [x]	Static Pressure	Static Pressure	Voltage - Rated [Min]	Voltage - Rated [Max]	Material - Blade	Power (Watts)	Voltage Range [Min]	Voltage Range [Max]	Bearing Type	Noise	Lifetime @ Temp.	Fan Type	Approval Agency	Termination	Weight	Weight	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	RPM	Features	Operating Temperature [Max]	Current Rating (Amps) [Max]	Current Rating (Amps) [Min]	Voltage - Rated [Max]	Ingress Protection
Orion Fans OA109EC-UR-1WBXC	3.79 m³/min	133.8 CFM	38 mm	120 mm	120 mm	0.42 in H2O	104.6 Pa	110 VAC	220 VAC	Polybutylene Terephthalate (PBT)	6.5 W	85 VAC	256 VAC	Ball	47 dB	70000 Hrs	Tubeaxial	CE cURus TUV UR	2 Wire Leads	309.8 g	0.683 lb	70 °C	70 °C	-10 °C	-10 °C	3000 RPM	Dual Voltage Electronic Commutation (EC)
Orion Fans OA109EC-UR-1WB	2.97 mł/min	106 CFM	38 mm	120 mm	120 mm	0.34 in H2O	84.7 Pa	115 VAC		Polybutylene Terephthalate (PBT)	4.9 W 5.2 W	90 VAC	265 VAC	Ball	43 dB	60000 Hrs	Tubeaxial	CE cURus UR	2 Wire Leads	290.3 g	0.64 lb		70 °C	-20 °C	-20 C	3200 RPM	Dual Voltage Electronic Commutation (EC) Thermal Overload Protector (TOP)	70 °C	0.08 A	0.06 A	230 VAC
Orion Fans OA109EC-UR-1TB	2.97 mł/min	106 CFM	38 mm	120 mm	120 mm	0.34 in H2O	84.7 Pa	115 VAC		Polybutylene Terephthalate (PBT)	4.9 W 5.2 W	90 VAC	265 VAC	Ball	43 dB	60000 Hrs	Tubeaxial	CE cURus UR	2 Terminals	290.3 g	0.64 lb		70 °C	-20 °C	-20 C	3200 RPM	Dual Voltage Electronic Commutation (EC) Thermal Overload Protector (TOP)	70 °C	0.08 A	0.06 A	230 VAC
Orion Fans OA109EC-UR-1WBIP68A	2.97 mł/min	106 CFM	38 mm	120 mm	120 mm	0.34 in H2O	84.7 Pa	115 VAC		Polybutylene Terephthalate (PBT)	4.9 W 5.2 W	90 VAC	265 VAC	Ball	43 dB	60000 Hrs	Tubeaxial	ATEX CE cURus UR	2 Wire Leads	290.3 g	0.64 lb		70 °C	-20 °C	-20 C	3200 RPM	Dual Voltage Electronic Commutation (EC) Thermal Overload Protector (TOP)	70 °C	0.08 A	0.06 A	230 VAC	IP68 - Dust Tight Waterproof

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 31.45
		10	$ 28.72
		25	$ 27.63
		50	$ 25.82
		100	$ 23.82
		250	$ 23.45

Description

General part information

OA109EC Series

Fan Tubeaxial 110/220VAC Square - 120mm L x 120mm H Ball 133.8 CFM (3.79m³/min) 2 Wire Leads
