19203 010250

Active

Belden Inc.

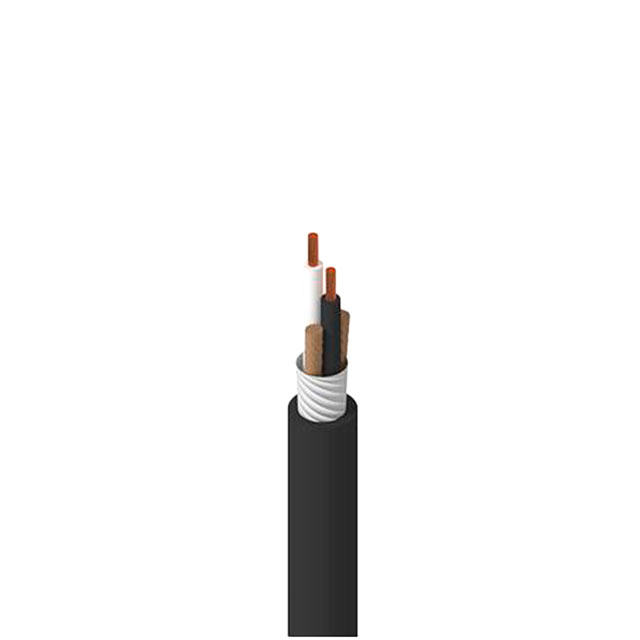

CABLE 2COND 16AWG BLACK

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2COND 16AWG BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	19203 010250

Cable Type	Multi-Conductor
Conductor Insulation	Ethylene Propylene Terpolymer Rubber (EPDM)
Conductor Material	Copper, Bare
Conductor Strand [custom]	34 AWG
Conductor Strand [custom]	65
Features	Oil Resistant
Jacket (Insulation) Diameter [diameter]	0.385 "
Jacket (Insulation) Diameter [diameter]	9.78 mm
Jacket (Insulation) Material	Rubber
Jacket (Insulation) Thickness	0.065 in
Jacket (Insulation) Thickness	1.651 mm
Jacket Color	Black
Length	3000 "
Length	76.2 m
Number of Conductors	2
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-20 C
Ratings	UL Style SO
Usage	Cord and Cordset
Voltage	600 V
Wire Gauge	16 AWG

Part	Voltage	Ratings	Cable Type	Number of Conductors	Features	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Usage	Jacket Color	Conductor Insulation	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Material	Length	Length	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge
Belden Inc. 19203 010250	600 V	UL Style SO	Multi-Conductor	2	Oil Resistant	0.065 in	1.651 mm	0.385 "	9.78 mm	Cord and Cordset	Black	Ethylene Propylene Terpolymer Rubber (EPDM)	Rubber	34 AWG	65	Copper Bare	3000 "	76.2 m	-20 C	90 °C	16 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	250	$ 7.33

General part information

2 Conductor Multi-Conductor Cable Black 16 AWG 250.0' (76.2m)
