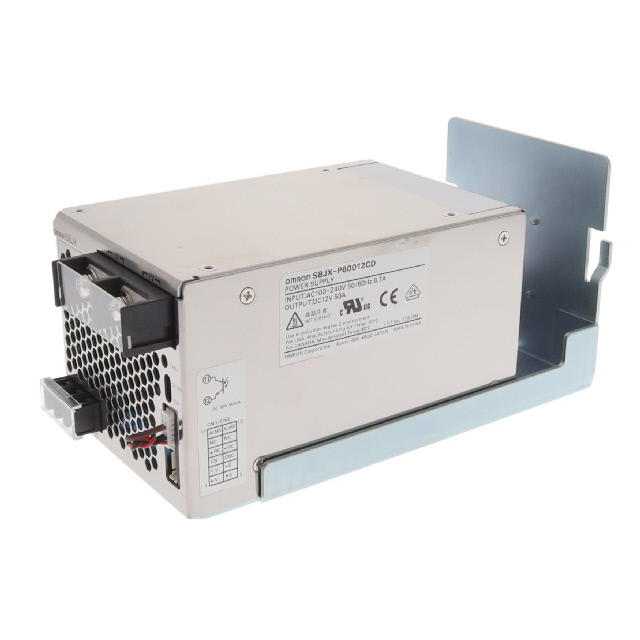

S8JX-P60012CD

Active

Omron Electronics Inc-EMC Div

AC/DC CONVERTER 12V 600W

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

AC/DC CONVERTER 12V 600W

Technical Specifications

Parameters and characteristics for this part

Specification	S8JX-P60012CD

Applications	ITE (Commercial)
Approval Agency	cULus, VDE, CE, cURus
Current - Output 1	53 A
Efficiency	76 %
Features	Universal Input, Load Sharing
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-10 °C
Power (Watts)	600 W
Size / Dimension [x]	9.44 in
Size / Dimension [x]	239.8 mm
Size / Dimension [y]	3.06 "
Size / Dimension [y]	77.6 mm
Size / Dimension [z]	118.5 mm
Size / Dimension [z]	4.67 in
Type	Enclosed
Voltage - Output 1	12 V

Part	Approval Agency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Number of Outputs	Mounting Type	Efficiency	Voltage - Output 1	Features	Power (Watts)	Type	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Applications	Current - Output 1
Omron Electronics Inc-EMC Div S8JX-P60012CD	CE cULus cURus VDE	3.06 "	9.44 in	118.5 mm	77.6 mm	4.67 in	239.8 mm	1	Chassis Mount	76 %	12 V	Load Sharing Universal Input	600 W	Enclosed	-10 °C	158 °F	ITE (Commercial)	53 A
Omron Electronics Inc-EMC Div S8JX-P60024C	CE cULus cURus VDE	3.06 "	9.44 in	118.5 mm	77.6 mm	4.67 in	239.8 mm	1	Chassis Mount	78 %	24 V	Load Sharing Universal Input	600 W	Enclosed	-10 °C	158 °F	ITE (Commercial)	27 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 618.19

General part information

Enclosed AC DC Converters 1 Output 12V 85 ~ 264 VAC Input
