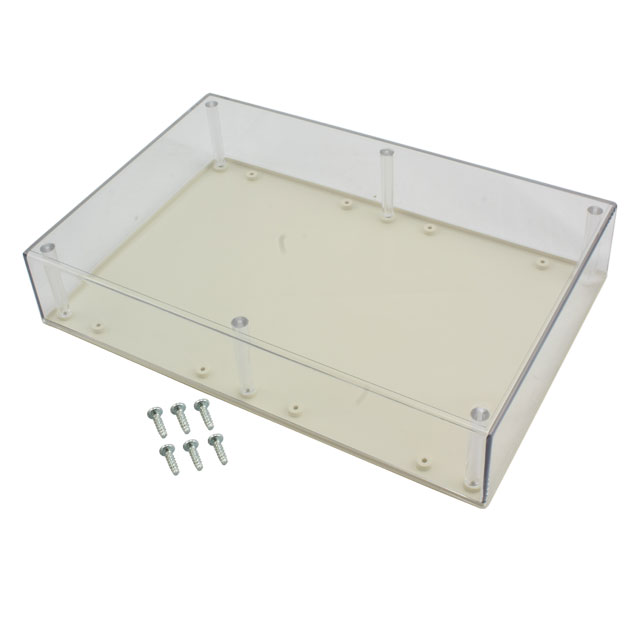

093C,AL

Active

Serpac

BOX PLSTC AMD/CL 9.5"L X 6.34"W

Search across all available documentation for this part.

Active

Serpac

BOX PLSTC AMD/CL 9.5"L X 6.34"W

Technical Specifications

Parameters and characteristics for this part

Part	Ratings	Design	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension	Area (L x W)	Area (L x W)	Features	Height [z]	Height [z]	Material	Weight	Weight	Container Type	Thickness	Thickness	Color
Serpac 093C,AL	IP40 NEMA 1	Cover Included Hand Held	9.5 "	6.34 "	161.04 mm 241.3 mm	388 cm²	60.2 in²	PCB Supports	48.26 mm	1.9 in	Plastic Polycarbonate	0.64 lb	290.3 g	Box	2.54 mm	0.1 in
Serpac 093C,BK	IP40 NEMA 1	Cover Included Hand Held	9.5 "	6.34 "	161.04 mm 241.3 mm	388 cm²	60.2 in²	PCB Supports	48.26 mm	1.9 in	Plastic Polycarbonate	0.64 lb	290.3 g	Box	2.54 mm	0.1 in	Black Clear Cover/Door

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.28

General part information

Box Plastic, Polycarbonate Almond, Clear Cover/Door Hand Held, Cover Included 9.500" L x 6.340" W (241.30mm x 161.04mm) X 1.900" (48.26mm)

Technical documentation and resources

No documents available
