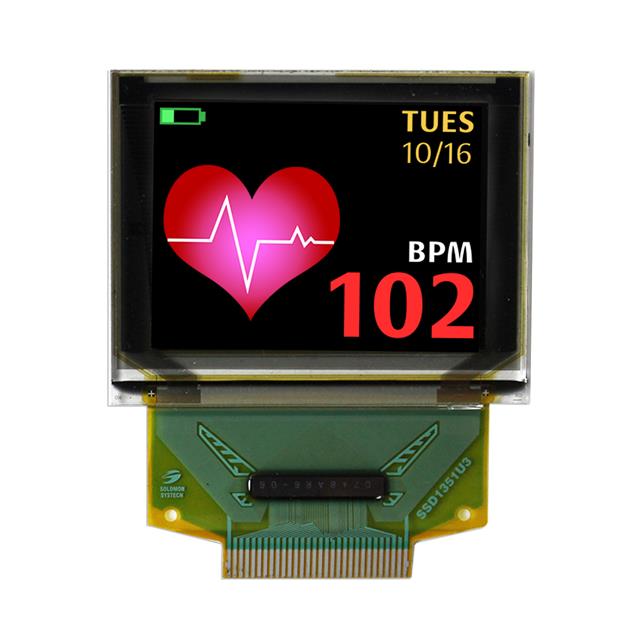

NHD-1.27-12896G

Active

Newhaven Display Intl

1.27" FULL COLOR OLED GLASS

Search across all available documentation for this part.

Active

Newhaven Display Intl

1.27" FULL COLOR OLED GLASS

Technical Specifications

Parameters and characteristics for this part

Part	Dot Pixels [x]	Dot Pixels [y]	Diagonal Screen Size	Diagonal Screen Size	Interface	Display Mode	Graphics Color	Controller Type	Display Type	Viewing Area [y]	Viewing Area [x]	Dot Pitch [x]	Dot Pitch [y]	Backlight	Dot Size [z]	Dot Size [y]	Background Color	Type	Function	Contents	Secondary Attributes	Supplied Contents	Utilized IC / Part
Newhaven Display Intl NHD-1.27-12896G	128	96	1.27 in	32.26 mm	Parallel Serial	Transflective	Blue Green Red	SSD1351	OLED	21.28 mm	27.71 mm
Newhaven Display Intl NHD-1.27-12896ASC3	128	96	1.27 in	32.26 mm	SPI		Blue Green Red	SSD1351	OLED - Passive Matrix	20.28 mm	26.71 mm	0.2 mm	0.2 mm	Without Backlight	0.19 mm	0.14 mm	Black
Newhaven Display Intl NHD-1.27-BREAKOUT																		Display	Breakout Board	Board(s)	SPI Interface(s)	Board(s)	NHD-1.27-12896G SSD1357
Newhaven Display Intl NHD-1.27-12896UGC3	128	96	1.3 in	33.02 mm	Parallel/Serial		Blue Green Red	SSD1351	OLED - Passive Matrix	20.28 mm	26.71 mm	0.22 mm	0.22 mm	Without Backlight	0.2 mm	0.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Graphic LCD Display Module Transflective Red, Green, Blue (RGB) OLED Parallel, Serial 1.27" (32.26mm) 128 x 96
